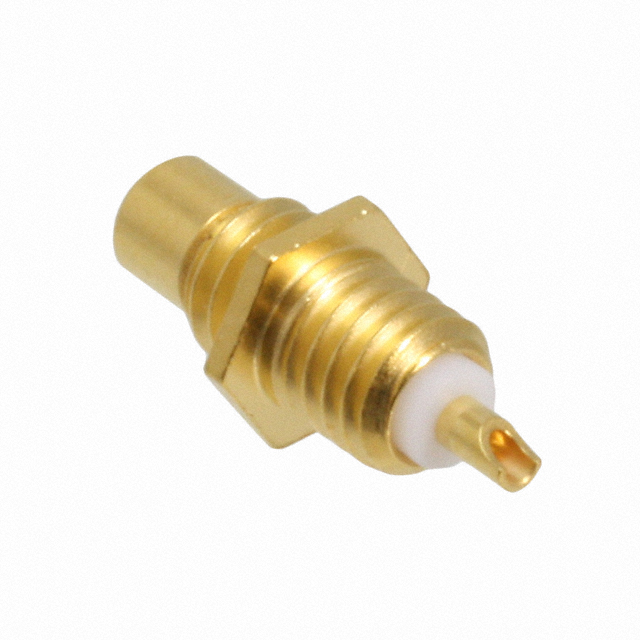

903-408J-52R

Active

Amphenol RF

CONN SMC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-408J-52R

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Receptacle
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Shield Termination	Center Contact Material	Connector Style	Body Material	Connector Type	Contact Termination	Number of Ports	Insertion Loss	Housing Color	Impedance	Center Contact Plating	Mounting Feature	Body Finish
Amphenol RF 903-408J-52R	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500	Solder	Brass	SMC	Brass	Male Pin Receptacle	Solder Cup	1	0.3 dB	Gold	50 Ohms	Gold	Bulkhead - Rear Side Nut	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
