Q-1T03I0003072i
ActiveAmphenol Custom Cable
CBL ASSY SMB-NTYPE JACK-JACK 6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-1T03I0003072i
ActiveAmphenol Custom Cable
CBL ASSY SMB-NTYPE JACK-JACK 6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1T03I0003072i |
|---|---|
| 1st Connector | Right Angle, SMB Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 6 ft |
| Length | 72 in |
| Length | 1.8 m |
| Overall Impedance | 50 Ohms |
| Style | SMB to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 92.59 | |
| 25 | $ 90.79 | |||
| 50 | $ 89.00 | |||
| 100 | $ 87.21 | |||
| 250 | $ 85.41 | |||
Description
General part information
Q-1T03I0 Series

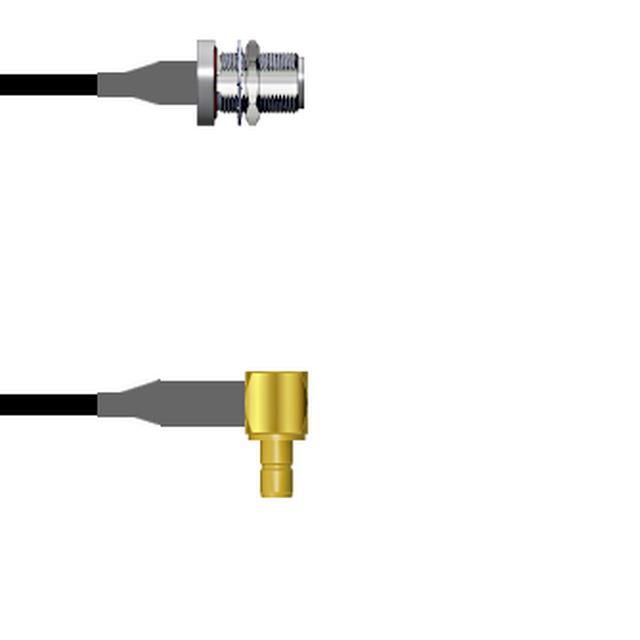

Cable Assembly Coaxial SMB to N-Type RG-174 72.0" (1.8m) 6.0'
Documents
Technical documentation and resources
No documents available
