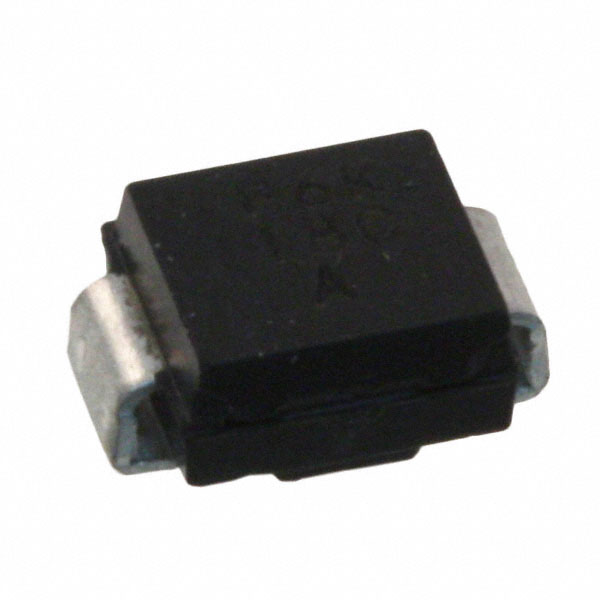

Specification	SMBJ24CA

Applications	General Purpose
Bidirectional Channels	1
Current - Peak Pulse	15.4 A
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Package / Case	SMB, DO-214AA
Package Name	DO-214AA (SMBJ)
Power - Peak Pulse	600 W
Power Line Protection	No
Type	Zener
Voltage - Breakdown (Min)	26.7 V
Voltage - Clamping (Max)	38.9 V
Voltage - Reverse Standoff (Typ)	24 V

SMBJ24 Series

Part	Package Name	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Current - Peak Pulse	Bidirectional Channels	Voltage - Clamping (Max)	Power Line Protection	Power - Peak Pulse	Applications	Type	Voltage - Reverse Standoff (Typ)	Mounting Type	Voltage - Breakdown (Min)
Microsemi Corporation SMBJ24CA	DO-214AA (SMBJ)	DO-214AA SMB	150 °C	-65 °C	15.4 A	1	38.9 V	No	600 W	General Purpose	Zener	24 V	Surface Mount	26.7 V
