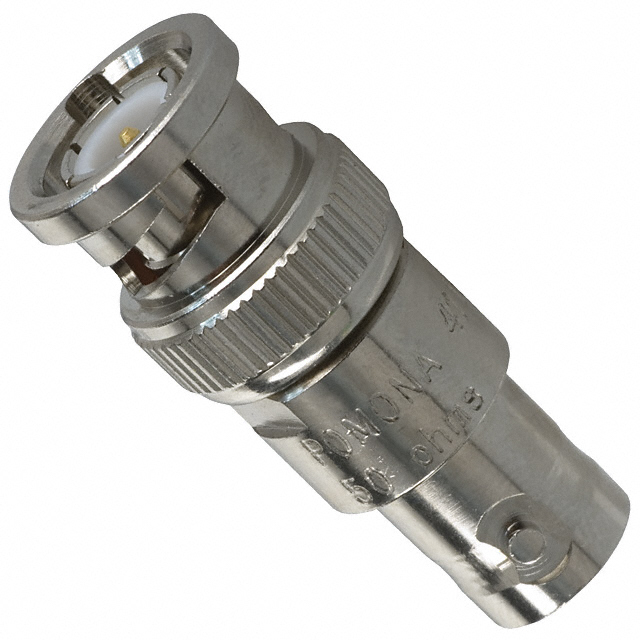

4119-50

Active

Pomona Electronics

CONN TERMINATOR ADAPT BNC 50OHM

Search across all available documentation for this part.

Active

Pomona Electronics

CONN TERMINATOR ADAPT BNC 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	4119-50

Body Material	Brass
Connector Style	BNC
Connector Type	Adapter, Jack to Plug
Contact Finish	Gold
Contact Material	Brass, Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Feed Through
Frequency - Max [Max]	500 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)

Part	Connector Type	Impedance	Body Material	Features	Mounting Type	Contact Material	Frequency - Max [Max]	Contact Finish	Connector Style	Dielectric Material
Pomona Electronics 4119-50	Adapter Jack to Plug	50 Ohms	Brass	Feed Through	Free Hanging (In-Line)	Beryllium Copper Brass	500 MHz	Gold	BNC	Polytetrafluoroethylene (PTFE)
Pomona Electronics 4119-50#	Adapter Jack to Plug	50 Ohms	Brass	Feed Through	Free Hanging (In-Line)	Beryllium Copper Brass	500 MHz	Gold	BNC	Polytetrafluoroethylene (PTFE)
Pomona Electronics 4119-600	Adapter Jack to Plug	600 Ohms	Brass	Feed Through	Free Hanging (In-Line)	Beryllium Copper Brass	500 MHz	Gold	BNC	Polytetrafluoroethylene (PTFE)
Pomona Electronics 4119-75	Adapter Jack to Plug	75 Ohms	Brass	Feed Through	Free Hanging (In-Line)	Beryllium Copper Brass	500 MHz	Gold	BNC	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Adapter, Jack to Plug BNC 50 Ohms
