MAXQ618J-0000+

Active

Analog Devices Inc./Maxim Integrated

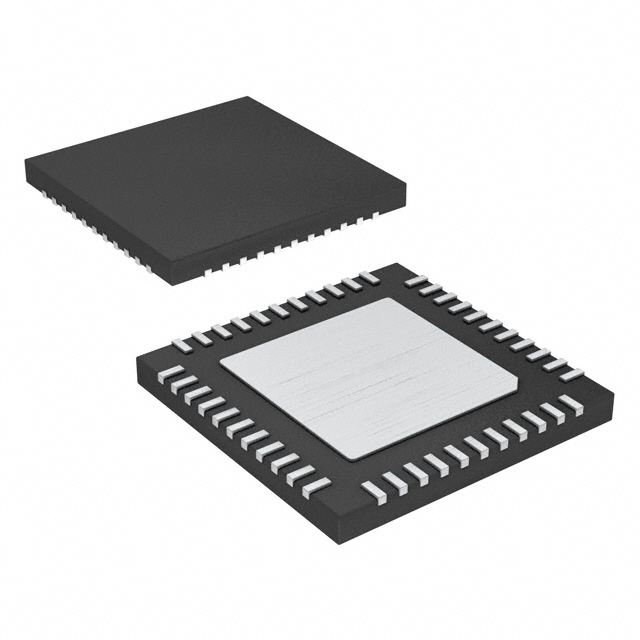

IC MCU 16BIT 80KB FLASH 44TQFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC MCU 16BIT 80KB FLASH 44TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	MAXQ618J-0000+

Connectivity	SPI, UART/USART
Core Processor	MAXQ20S
Core Size	16-Bit
Mounting Type	Surface Mount
Number of I/O	32
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Oscillator Type	Internal
Package / Case	44-WFQFN Exposed Pad
Peripherals	WDT, POR, Power-Fail, Infrared, Brown-out Detect/Reset
Program Memory Size	80 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	12 MHz
Supplier Device Package	44-TQFN (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	127	$ 2.37

IC MCU 16BIT 80KB FLASH 44TQFN

Part	Mounting Type	Supplier Device Package	RAM Size	Peripherals	Number of I/O	Connectivity	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Program Memory Type	Oscillator Type	Core Processor	Core Size
Analog Devices Inc./Maxim Integrated MAXQ618J-0000+	Surface Mount	44-TQFN (7x7)	2K x 8	Brown-out Detect/Reset, Infrared, POR, Power-Fail, WDT	32	SPI, UART/USART	3.6 V	1.7 V	12 MHz	80 KB	70 °C	0 °C	44-WFQFN Exposed Pad	FLASH	Internal	MAXQ20S	16-Bit

General part information

MAXQ20S MAXQ® Microcontroller IC 16-Bit 12MHz 80KB (80K x 8) FLASH 44-TQFN (7x7)
