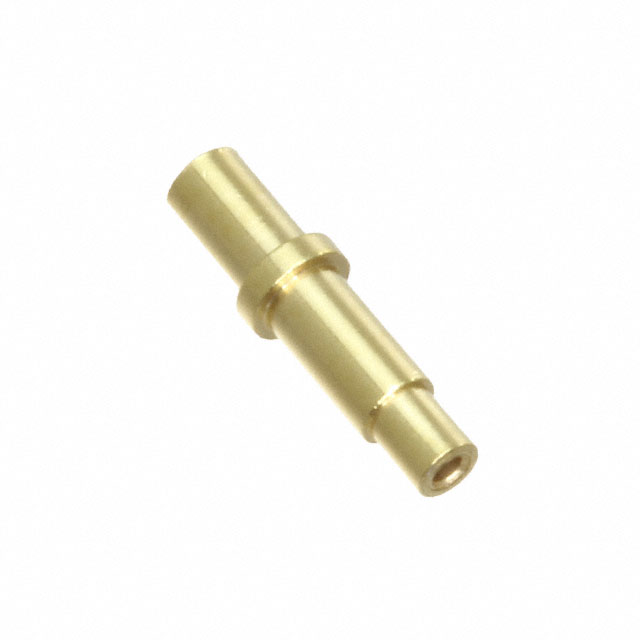

7620-0-34-15-16-27-10-0
ActiveMill-Max Manufacturing Corp.
DOUBLE ENDED RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7620-0-34-15-16-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.86 mm, 0.034 " |
| Accepts Pin Diameter [Max] | 0.046 ", 1.17 mm |
| Accepts Pin Diameter [Min] | 0.81 mm |
| Accepts Pin Diameter [Min] | 0.032 ", 0.022 " |
| Accepts Pin Diameter [Min] | 0.56 mm |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Length - Overall [x] | 0.445 in |
| Length - Overall [x] | 11.3 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter | 1.63 mm, 1.3 mm |
| Pin Hole Diameter | 0.064 ", 0.051 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.64 | |
| 10 | $ 2.40 | |||
| 25 | $ 2.27 | |||
| 50 | $ 2.22 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.85 | |||
| 500 | $ 1.80 | |||
| 1000 | $ 1.53 | |||
| 3000 | $ 1.43 | |||
Description
General part information
7620-0 Series
Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm), 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
