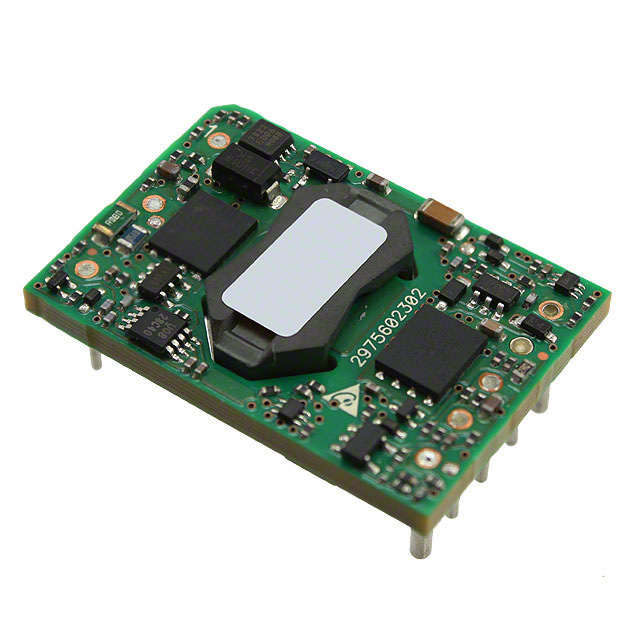

V36SE05010NRFA

Active

Delta Electronics

DC-DC 36VIN 1-OUT 5V 10A 8-PIN 1/16-BRICK

Search across all available documentation for this part.

Active

Delta Electronics

DC-DC 36VIN 1-OUT 5V 10A 8-PIN 1/16-BRICK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

MODULE DC-DC 36VIN 1-OUT 12V 4.2A 8-PIN 1/16-BRICK

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output (Max) [Max]	Features	Control Features	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Type	Voltage - Isolation	Applications	Package / Case	Supplier Device Package	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
Delta Electronics V36SE12004NRFA	1	122 °C	-40 °C	Through Hole	4.2 A	OCP, OTP, OVP, Remote On/Off, UVLO	Active Low, Enable	88 %	18 V	75 V	12 V	50 W	Isolated Module	2250 VDC	ITE (Commercial)	8-DIP Module, 1/16 Brick
Delta Electronics V36SE05010NRFA	1	119 °C	-40 °C	Through Hole	10 A	OCP, OTP, OVP, Remote On/Off, UVLO	Active Low, Enable	91 %	18 V	75 V	5 V	50 W	Isolated Module	2250 VDC	ITE (Commercial)	8-DIP Module, 1/16 Brick	Sixteenth Brick	CSA, EN, IEC, UL	60950-1, 62368-1	33 mm	1.3 "	22.9 mm	0.9 "	9.4 mm	0.37 in
