794285-1

Active

TE Connectivity AMP Connectors

CONN HDR 4POS 0.2 TIN PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HDR 4POS 0.2 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	794285-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.455 in
Insulation Height	11.56 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Style	Board to Cable/Wire
Termination	Solder

CONN HDR 4POS 0.2 TIN PCB

Part	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Style	Insulation Color	Mounting Type	Number of Positions	Contact Shape	Insulation Material	Contact Material	Contact Type	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post	Contact Length - Post
TE Connectivity AMP Connectors 794285-1	Header	UL94 V-2	5.08 mm	0.2 in	Board to Cable/Wire	Natural	Through Hole	4	Circular	Nylon, Polyamide (PA)	Phosphor Bronze	Female Socket	Tin	Detent Lock	All	Solder	0.455 in	11.56 mm	1	4.32 mm	0.17 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

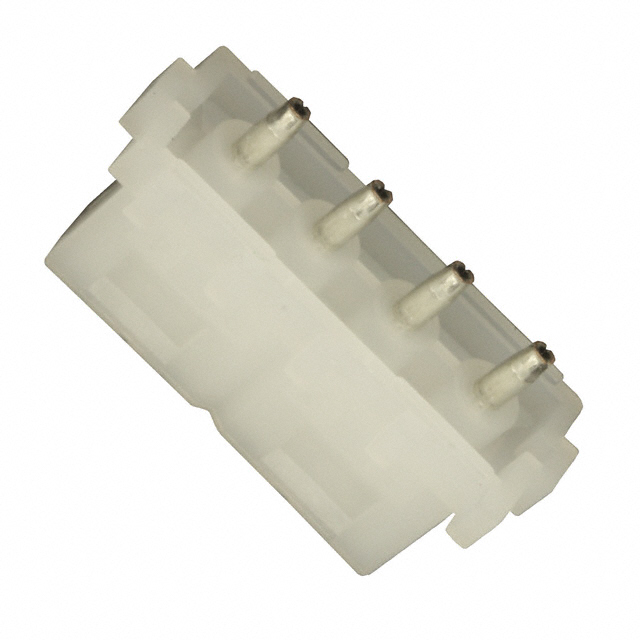

4 Position Header Connector 0.200" (5.08mm) Through Hole Tin
