LCBST-6-01
ActiveEssentra Access Solutions

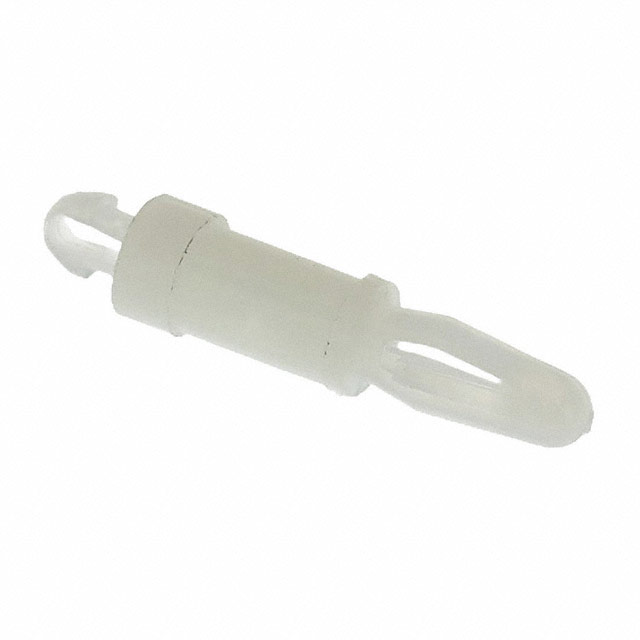

BRD SPT SNAP LOCK NYLON 3/8"
Deep-Dive with AI
Search across all available documentation for this part.
LCBST-6-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 3/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBST-6-01 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 21.86 mm |
| Length - Overall [x] | 0.861 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 2.54 mm |
| Mounting Hole Diameter [diameter] | 0.1 in |
| Mounting Panel Thickness | 0.064 in |
| Mounting Panel Thickness | 1.63 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 5 | $ 0.40 | |||
| 10 | $ 0.33 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.22 | |||
Description
General part information
LCBST Series
Board Support Snap Lock / Snap Lock Nylon 0.375" (9.53mm) 3/8"
Documents
Technical documentation and resources
No documents available
