2401C SL005

Active

ALPHA WIRE

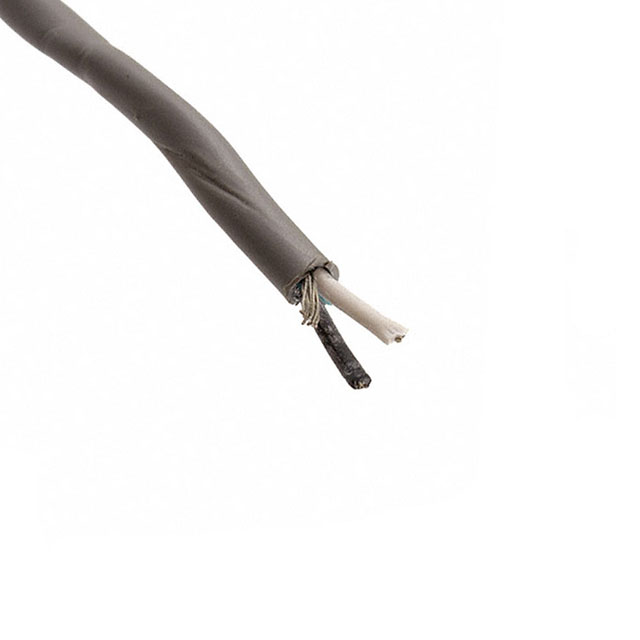

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 0.357 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 0.357 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	2401C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 0.357 MM², 100 FT, 30.5 M

Part	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Wire Gauge	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Shield Coverage	Voltage	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Material	Cable Type	Shield Material
ALPHA WIRE 2401C SL005	2	Polyethylene (PE)	4.27 mm	0.168 in	Copper, Tinned	22 AWG	Communication, Control	0.02 in	0.508 mm	Foil	7	30 AWG	Drain Wire	100 %	300 V	30.5 m	100 ft	Slate	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG Foil 100.0' (30.5m)
