2249-C-300

Active

Pomona Electronics

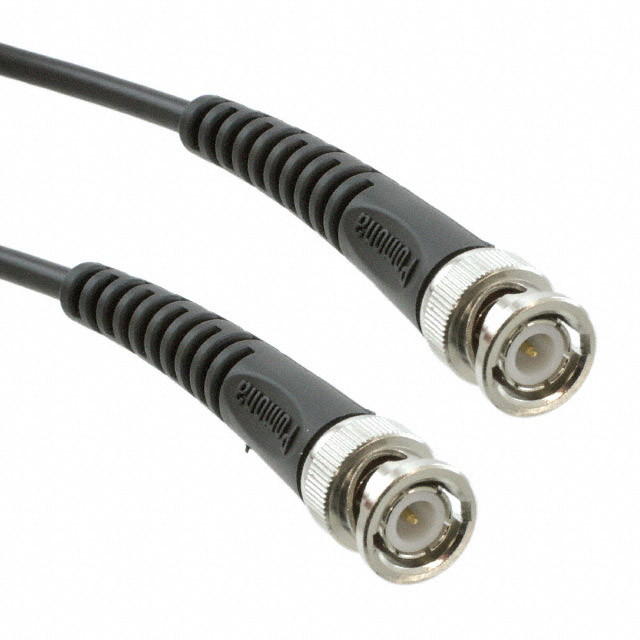

CBL ASSY BNC PLUG TO PLUG 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2249-C-300

Active

Pomona Electronics

CBL ASSY BNC PLUG TO PLUG 25'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2249-C-300

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58C
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	25 ft
Length	25 ft
Length	7.6 m
Overall Impedance	50 Ohms
Style	BNC to BNC

2249 Series

Part	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	Cable Impedance	Style	2nd Contact Gender	Features	1st Connector	2nd Connector	Color	Cable Type	1st Connector Mounting Type	Length	Length	Length	Frequency - Max [Max]
Pomona Electronics 2249-K-12	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-174	Free Hanging (In-Line)	12 "	304.8 mm
Pomona Electronics 2249-K-72	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-174	Free Hanging (In-Line)	72 in	1.8 m	6 ft
Pomona Electronics 2249-Y-36	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black		Free Hanging (In-Line)	36 in	91.44 cm
Pomona Electronics 2249-E-6	Male	75 Ohms	Free Hanging (In-Line)	75 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-59B	Free Hanging (In-Line)	6 in	152.4 mm
Pomona Electronics 2249-C-60#	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-58C	Free Hanging (In-Line)	5 '	1.5 m	5 ft	4 GHz
Pomona Electronics 2249-Y-48	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black		Free Hanging (In-Line)	48 in	1200 mm	4 ft
Pomona Electronics 2249-C-300	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-58C	Free Hanging (In-Line)	25 ft	7.6 m	25 ft	4 GHz
Pomona Electronics 2249-C-240	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-58C	Free Hanging (In-Line)	20 ft	6.1 m	20 ft	4 GHz
Pomona Electronics 2249-C-6	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black	RG-58C	Free Hanging (In-Line)	6 in	152.4 mm		4 GHz
Pomona Electronics 2249-Y-60	Male	50 Ohms	Free Hanging (In-Line)	50 Ohms	BNC to BNC	Male	Shielded	BNC Plug	BNC Plug	Black		Free Hanging (In-Line)	5 '	1.5 m	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.89
		25	$ 54.39

Description

General part information

2249 Series

Cable Assembly Coaxial BNC to BNC RG-58C 300.0" (7.6m) 25.0'
