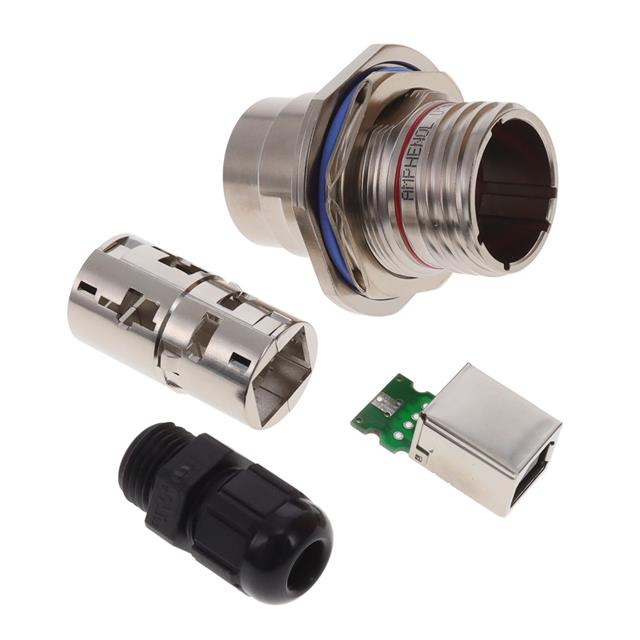

USBBFTV7PE2N

Active

Amphenol Socapex

CONN RCP USB2.0 TYPEB 4P PNL MNT

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN RCP USB2.0 TYPEB 4P PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	USBBFTV7PE2N

Connector Type	USB-B
Features	Circular Threaded Coupling, Backshell
Gender	Receptacle
Ingress Protection	IP68 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Aluminum
Specifications	USB 2.0
Termination	Solder

Part	Shell/Shielding Material	Number of Contacts [custom]	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Features	Connector Type	Mounting Feature	Termination	Gender	Mating Cycles	Ingress Protection	Specifications	Convert From (Adapter End)	Convert To (Adapter End)	Mounting Type	Transfer Rate	Wire Gauge	Shielding	Configuration	Length [x]	Length [x]
Amphenol Socapex USBBFTV7PE2G	Aluminum	4	1	85 °C	-40 °C	Backshell Circular Threaded Coupling	USB-B	Bulkhead - Front Side Nut	Solder	Receptacle	500	IP68 - Dust Tight Waterproof	USB 2.0
Amphenol Socapex USBBFTV7PE2N	Aluminum	4	1	85 °C	-40 °C	Backshell Circular Threaded Coupling	USB-B	Bulkhead - Front Side Nut	Solder	Receptacle	500	IP68 - Dust Tight Waterproof	USB 2.0
Amphenol Socapex USBBFTV7PE1N														USB-B (USB TYPE-B) Receptacle	Receptacle USB-A (USB TYPE-A)	Bulkhead Panel Mount
Amphenol Socapex USBBFTV7S2G03OPEN						Data Transfer and Charge Industrial Environments - IP68							USB 2.0				480 Mbps	24 AWG 28 AWG	Shielded	B Female to Cable Round (Circular Coupling)	0.98 ft	300 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.30

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Panel Mount
