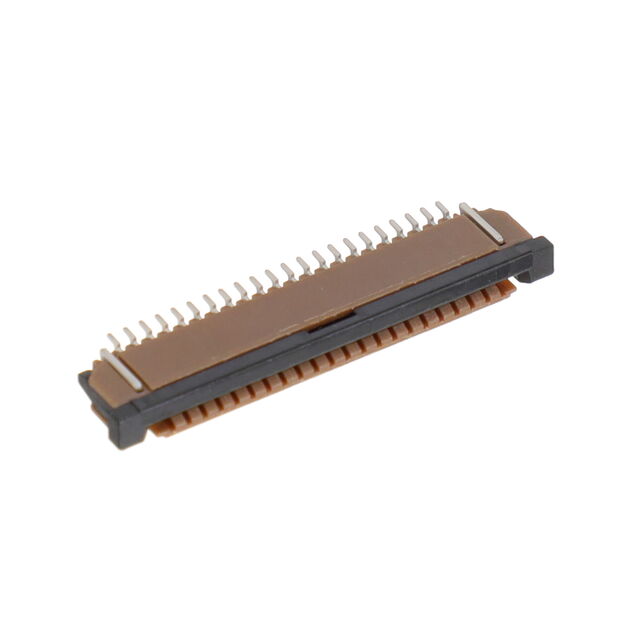

SFW22R-2STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 22POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW22R-2STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 22POS 1MM R/A
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW22R-2STE1LF |
|---|---|
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Brown |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 22 positions |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Kinked Pin |
| Voltage Rating | 100 V |
SFW22R Series
| Part | Pitch [x] | Pitch [x] | Locking Feature | Housing Material | FFC, FCB Thickness | Height Above Board [z] | Height Above Board [z] | Termination | Number of Positions | Cable End Type | Mounting Type | Connector/Contact Type | Flat Flex Type | Housing Color | Mating Cycles | Actuator Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Material | Voltage Rating | Actuator Color | Features | FFC, FCB Thickness [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | 0.106 in | 2.7 mm | Solder | 22 positions | Tapered | Surface Mount Right Angle | Contacts Bottom | CIC | ||||||||||||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | 0.106 in | 2.7 mm | Kinked Pin | 22 positions | Straight Tapered | Surface Mount Right Angle | Contacts Top | FFC FPC | Brown | 20 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Tin | Phosphor Bronze | 100 V | ||||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | 0.106 in | 2.7 mm | Solder | 22 positions | Tapered | Surface Mount Right Angle | Contacts Top | CIC | Brown | 10 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Tin | Phosphor Bronze | 100 V | Beige | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.33 mm | 0.106 in | 2.7 mm | Solder | 22 positions | Tapered | Surface Mount Right Angle | Contacts Bottom | FPC | Brown | 20 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Gold | Phosphor Bronze | 100 V | Brown | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.106 in | 2.7 mm | Solder | 22 positions | Notched Tapered | Surface Mount Right Angle | Contacts Top | FFC FPC | Black | 20 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Tin | Phosphor Bronze | 100 V | Brown | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm 0.33 mm | |
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.106 in | 2.7 mm | Solder | 22 positions | Notched | Surface Mount Right Angle | Contacts Top | FPC | Brown | 20 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Gold | Phosphor Bronze | 100 V | Brown | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.106 in | 2.7 mm | Solder | 22 positions | Straight Tapered | Surface Mount Right Angle | Contacts Top | FFC FPC | Brown | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Tin Alloy | Phosphor Bronze | Black | 0.3 mm 0.33 mm | ||||||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.33 mm | 0.106 in | 2.7 mm | Solder | 22 positions | Notched | Surface Mount Right Angle | Contacts Bottom | FPC | Black | 20 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Tin | Phosphor Bronze | 100 V | Brown | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.106 in | 2.7 mm | Solder | 22 positions | Notched | Surface Mount Right Angle | Contacts Bottom | FFC FPC | Black | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Tin Alloy | Phosphor Bronze | Brown | 0.3 mm 0.33 mm | ||||||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | 0.106 in | 2.7 mm | Solder | 22 positions | Tapered | Surface Mount Right Angle | Contacts Top | FPC | Black | 20 | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 105 ░C | -55 °C | Gold | Phosphor Bronze | 100 V | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.15 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.15 | ||
| 10 | $ 0.67 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 2000 | $ 0.40 | ||
Description
General part information
SFW22R Series
22 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
