10075024-F01-04PLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 8POS 2MM

10075024-F01-04PLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 8POS 2MM

Description Specifications Series Pricing CAD Documents

Description

General part information

10075024 Series

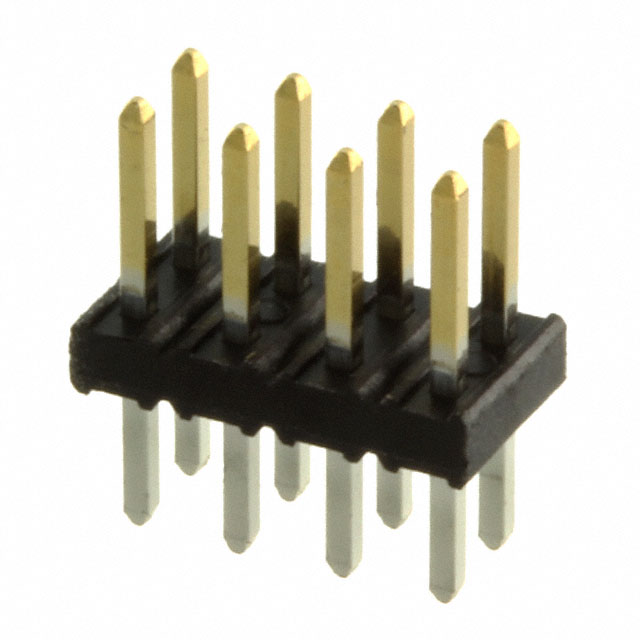

Connector Header Through Hole 8 position 0.079" (2.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	10075024-F01-04PLF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	78.7 µin
Contact Length - Mating	0.157 in
Contact Length - Post	0.079 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.295 in
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	200 V

10075024 Series

Part	Contact Finish Thickness - Post	Pitch - Mating	Insulation Height	Fastening Type	Voltage Rating	Overall Contact Length	Material Flammability Rating	Contact Finish Thickness - Mating	Current Rating	Contact Length - Post	Insulation Material	Style	Termination	Insulation Color	Row Spacing - Mating	Contact Type	Contact Finish - Post	Number of Positions Loaded	Connector Type	Contact Shape	Mounting Type	Contact Finish - Mating	Contact Material	Number of Positions	Shrouding	Contact Length - Mating	Number of Rows	Contact Finish Thickness - Mating	Number of Positions Loaded	Voltage Rating (Type)	Operating Temperature (Max)	Operating Temperature (Min)	Features
Amphenol ICC (FCI) 10075024-S01-17ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0	15 µin	2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	34	Unshrouded	0.157 in	2
Amphenol ICC (FCI) 10075024-S01-14ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0	15 µin	2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	28	Unshrouded	0.157 in	2
Amphenol ICC (FCI) 10075024-G01-23ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0	30 µin	2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	46	Unshrouded	0.157 in	2
Amphenol ICC (FCI) 10075024-F01-06ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0		2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	12	Unshrouded	0.157 in	2	Flash
Amphenol ICC (FCI) 10075024-F01A22ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0		2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin		Header	Square	Through Hole	Gold	Copper Alloy	22	Unshrouded	0.157 in	2	Flash	21
Amphenol ICC (FCI) 10075024-F03-04ALF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 VDC	0.366 in	UL94 V-0		2 A	0.079 in	Thermoplastic	Board	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	8	Unshrouded	0.228 in	2	Flash		DC	125 °C	-55 °C
Amphenol ICC (FCI) 10075024-G01-15ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0	30 µin	2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	30	Unshrouded	0.157 in	2
Amphenol ICC (FCI) 10075024-F01-04PLF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0		2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	8	Unshrouded	0.157 in	2	Flash					Pick and Place
Amphenol ICC (FCI) 10075024-S01-11ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0	15 µin	2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	22	Unshrouded	0.157 in	2
Amphenol ICC (FCI) 10075024-G01-03ULF	78.7 µin	0.079 in	0.059 in	Push-Pull	200 V	0.295 in	UL94 V-0	30 µin	2 A	0.079 in	Thermoplastic	Board Board or Cable	Solder	Black	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	6	Unshrouded	0.157 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

dps-12-011 Other Related Document

minitek productpresentation Other Related Document

Datasheet
