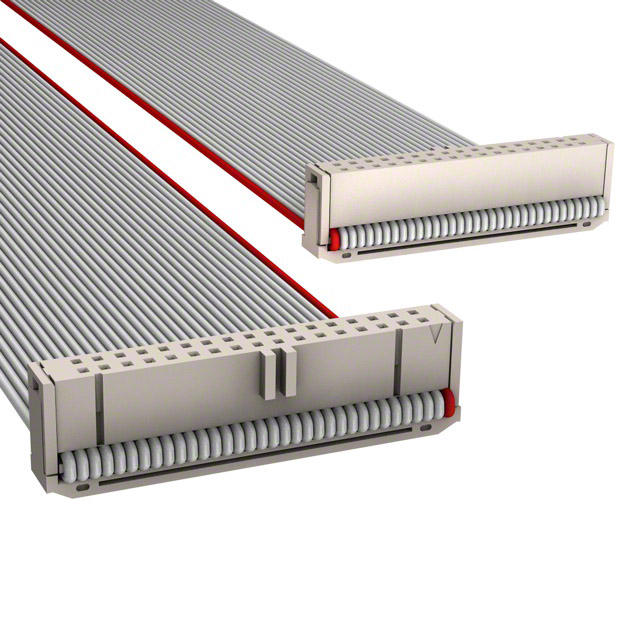

M3DDK-3436J
Active3M (TC)
IDC CABLE - MKR34K/MC34G/MKR34K
Deep-Dive with AI
Search across all available documentation for this part.
M3DDK-3436J
Active3M (TC)
IDC CABLE - MKR34K/MC34G/MKR34K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3DDK-3436J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Polarizing Key, Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M3DDK Series
| Part | Pitch - Cable | Pitch - Cable | Cable Termination | Connector Type | Length | Length | Length | Contact Finish | Number of Rows | Features | Shielding | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | 152.4 mm | 6 " | 0.5 ' | Gold | 2 | Polarizing Key Strain Relief | Unshielded | Multiple Ribbon | 24 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | |||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | 1.52 m | Gold | 2 | Polarizing Key Strain Relief | Unshielded | Multiple Twisted Pair (Flat) | 34 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 5 ' | ||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | 50 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 457.2 mm | 1.5 ft | |||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | 40 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 457.2 mm | 1.5 ft | |||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | 508 mm | Gold | 2 | Polarizing Key Strain Relief | Unshielded | Multiple Twisted Pair (Flat) | 60 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 1.67 ft | ||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | 14 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 914.4 mm | 3 ft | |||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | Multiple Twisted Pair (Flat) | 20 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 1.02 m | 3.34 ft | ||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | 20 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 914.4 mm | 3 ft | |||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | 34 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 914.4 mm | 3 ft | |||||
3M (TC) | 0.05 " | 1.27 mm | IDC | Socket to Socket | Gold | 2 | Polarizing Key Strain Relief | Unshielded | Multiple Ribbon | 20 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 457.2 mm | 1.5 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.13 | |
| 10 | $ 16.58 | |||
| 25 | $ 15.71 | |||
| 50 | $ 15.48 | |||
| 100 | $ 13.66 | |||
| 250 | $ 12.75 | |||
| 500 | $ 12.48 | |||
Description
General part information
M3DDK Series
34 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
