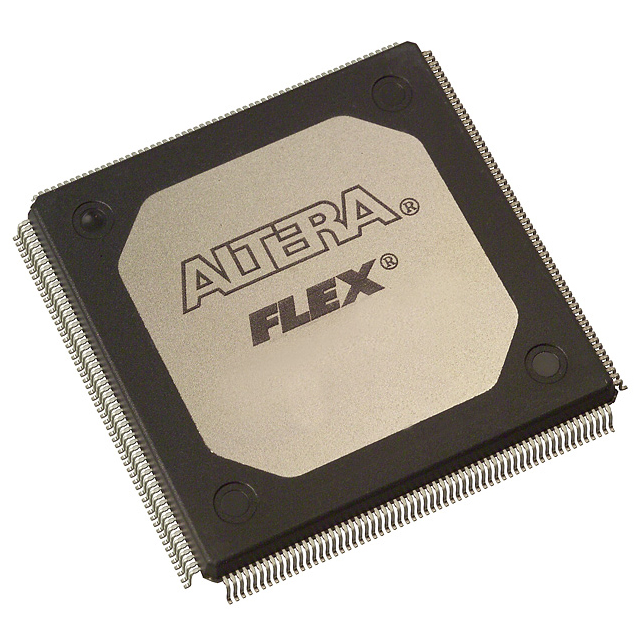

EPF10K50VRI240-4

Obsolete

Altera

IC FPGA 189 I/O 240RQFP

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 189 I/O 240RQFP

Technical Specifications

Parameters and characteristics for this part

Specification	EPF10K50VRI240-4

Mounting Type	Surface Mount
Number of Gates	116000
Number of I/O	189
Number of LABs/CLBs	360
Number of Logic Elements/Cells	2880
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	240-BFQFP Exposed Pad
Supplier Device Package	240-RQFP (32x32)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Gates	Number of LABs/CLBs	Number of I/O	Total RAM Bits	Package / Case	Number of Logic Elements/Cells	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]
Altera EPF10K50EQC240-2N	70 °C	0 °C	199000	360	189	40960 bits	240-BFQFP	2880	Surface Mount	240-PQFP (32x32)	2.7 V	2.3 V
Altera EPF10K50VQI240-2	85 °C	-40 °C	116000	360	189		240-BFQFP	2880	Surface Mount	240-PQFP (32x32)	3.6 V	3 V
Altera EPF10K50VRI240-4	85 °C	-40 °C	116000	360	189		240-BFQFP Exposed Pad	2880	Surface Mount	240-RQFP (32x32)	3.6 V	3 V
Altera EPF10K50SFC256-1	70 °C	0 °C	199000	360	191	40960 bits	256-BGA	2880	Surface Mount	256-FBGA (17x17)	2.625 V	2.375 V
Altera EPF10K50VFC484-3	70 °C	0 °C	116000	360	291		484-BBGA	2880	Surface Mount	484-FBGA (23x23)	3.6 V	3 V
Altera EPF10K50SQC208-2X	70 °C	0 °C	199000	360	147	40960 bits	208-BFQFP	2880	Surface Mount	208-PQFP (28x28)	2.625 V	2.375 V
Altera EPF10K50VRI240-3	85 °C	-40 °C	116000	360	189		240-BFQFP Exposed Pad	2880	Surface Mount	240-RQFP (32x32)	3.6 V	3 V
Altera EPF10K50VRC240-1	70 °C	0 °C	116000	360	189		240-BFQFP Exposed Pad	2880	Surface Mount	240-RQFP (32x32)	3.6 V	3 V
Altera EPF10K50ETC144-1	70 °C	0 °C	199000	360	102	40960 bits	144-LQFP	2880	Surface Mount	144-TQFP (20x20)	2.7 V	2.3 V
Altera EPF10K50EFC484-2	70 °C	0 °C	199000	360	220	40960 bits	484-BBGA	2880	Surface Mount	484-FBGA (23x23)	2.7 V	2.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

FLEX-10K® Field Programmable Gate Array (FPGA) IC 189 20480 2880 240-BFQFP Exposed Pad
