6539Y8 8771000

Active

Belden Inc.

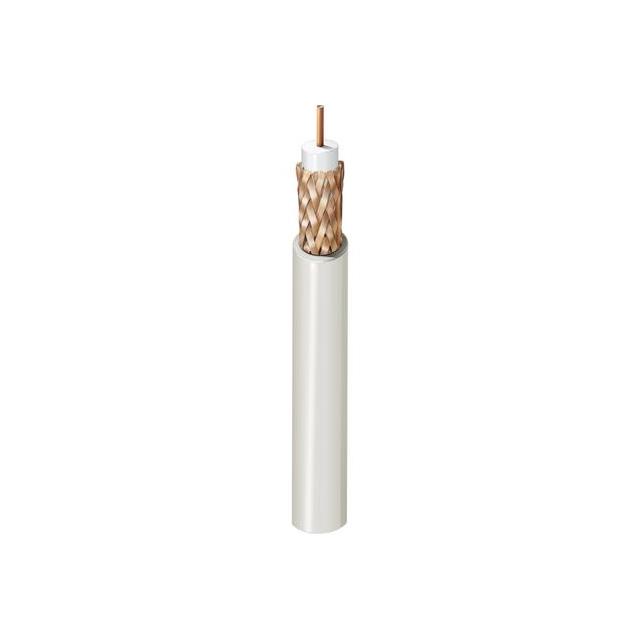

COAX RG62/U FLRST

Search across all available documentation for this part.

Active

Belden Inc.

COAX RG62/U FLRST

Technical Specifications

Parameters and characteristics for this part

Specification	6539Y8 8771000

Cable Group	RG-62
Cable Type	Coaxial - Plenum
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.146 "
Dielectric Diameter [diameter]	3.71 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	93 Ohms
Jacket (Insulation) Diameter [diameter]	0.204 in
Jacket (Insulation) Diameter [diameter]	5.18 mm
Jacket Color	Natural
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
VoP, Velocity of Propagation	84
Wire Gauge	22 AWG

Part	Shield Type	Wire Gauge	Shield Material	Length	Length	Jacket Color	Cable Group	Shield Coverage	Dielectric Material	Conductor Strand	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	VoP, Velocity of Propagation	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]
Belden Inc. 6539Y8 8771000	Braid	22 AWG	Copper Bare	304.8 m	1000 ft	Natural	RG-62	95 %	Foam Fluorinated Ethylene Propylene (FFEP)	Solid	Coaxial - Plenum	0.204 in	5.18 mm	84	Copper Coated Steel	75 ░C	0 °C	93 Ohms	0.146 "	3.71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 22 AWG RG-62 1000.0' (304.80m) 93 Ohms
