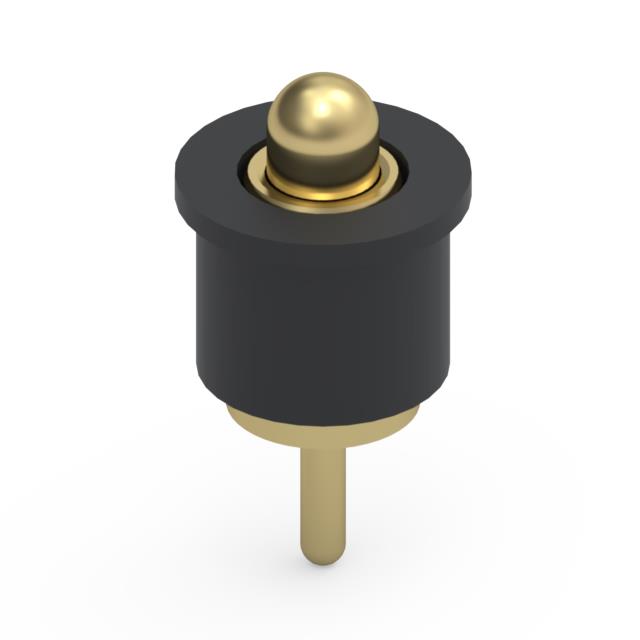

807-22-001-10-006101

Active

Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED T/H GOLD

Deep-Dive with AI

Search across all available documentation for this part.

807-22-001-10-006101

Active

Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED T/H GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-22-001-10-006101

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Copper Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	2 A
Features	Pick and Place
Material Flammability Rating	UL94 V-0
Mating Cycles	1000000
Maximum Working Height [Max]	6 mm
Maximum Working Height [Max]	0.236 in
Mounting Type	Through Hole
Operating Force - Initial	25 gf
Operating Force - Mid Compression	60 gf
Pad Layout Dimension [diameter]	1.83 mm
Pad Layout Dimension [diameter]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

807-22 Series

Part	Recommended Working Height	Recommended Working Height	Maximum Working Height [Max]	Maximum Working Height [Max]	Mating Cycles	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Operating Force - Initial	Material Flammability Rating	Contact Type	Contact Material	Operating Force - Mid Compression	Plunger Size [diameter]	Plunger Size [diameter]	Current Rating (Amps)	Pad Layout Dimension [custom]	Pad Layout Dimension [custom]	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Recommended Working Height [z]	Recommended Working Height [z]	Maximum Working Height [Max] [z]	Maximum Working Height [Max] [z]
Mill-Max Manufacturing Corp. 807-22-001-30-006101	5.29 mm	0.208 in	6 mm	0.236 in	1000000	Gold	0.51 µm	20 µin	Surface Mount	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-10-006101			6 mm	0.236 in	1000000	Gold	0.51 µm	20 µin	Through Hole	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A			1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-10-003101	3.8 mm	0.15 in	4.5 mm	0.177 in	1000000	Gold	0.51 µm	20 µin	Through Hole	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A			1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-30-001101	2.98 mm	0.117 in	3.48 mm	0.137 in	1000000	Gold	0.51 µm	20 µin	Surface Mount	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-30-000101					1000000	Gold	0.51 µm	20 µin	Surface Mount	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	70 gf	0.042 in	1.07 mm	2 A	1.83 mm	0.072 in			2.24 mm	0.088 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 807-22-001-10-022101			8.48 mm	0.334 in	1000000	Gold	0.51 µm	20 µin	Through Hole	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A			1.83 mm	0.072 in	7.34 mm	0.289 in
Mill-Max Manufacturing Corp. 807-22-001-10-001101	2.98 mm	0.117 in	3.48 mm	0.137 in	1000000	Gold	0.51 µm	20 µin	Through Hole	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A			1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-30-003101	3.8 mm	0.15 in	4.5 mm	0.177 in	1000000	Gold	0.51 µm	20 µin	Surface Mount	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-10-013101	3.8 mm	0.15 in	4.5 mm	0.177 in	1000000	Gold	0.51 µm	20 µin	Through Hole	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A			1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 807-22-001-10-004101			5 mm	0.197 in	1000000	Gold	0.51 µm	20 µin	Through Hole	Pick and Place	25 gf	UL94 V-0	Sleeve & Plunger (Pogo Pins)	Copper Alloy	60 gf	0.042 in	1.07 mm	2 A			1.83 mm	0.072 in	4.3 mm	0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.88
		10	$ 0.75
		25	$ 0.70
		50	$ 0.67
		100	$ 0.64
		250	$ 0.60
		500	$ 0.57
		1000	$ 0.54
		2500	$ 0.51

Description

General part information

807-22 Series

Contact Spring Through Hole

Documents

Technical documentation and resources

No documents available
