TARA5FX

Active

Switchcraft Inc.

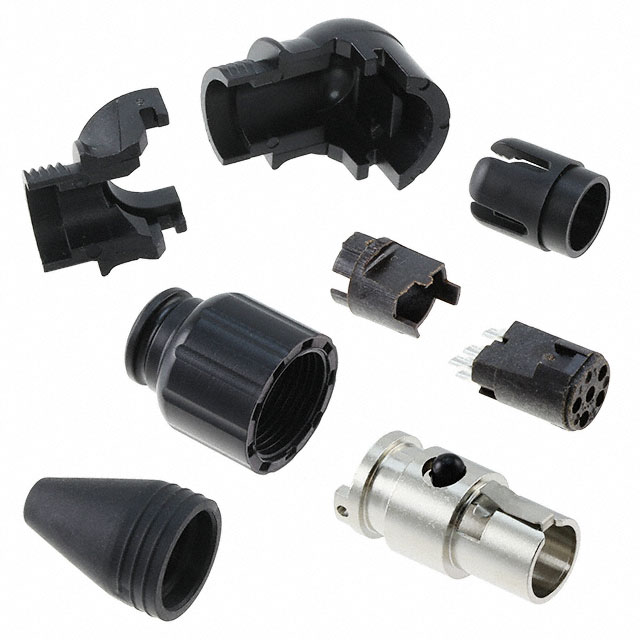

CONN PLUG FMALE MINI XLR 5P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 5P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TARA5FX

Applications	Communication Systems, Medical, Audio, Industrial
Cable Opening [Max] [diameter]	3.81 mm
Cable Opening [Max] [diameter]	0.15 in
Cable Opening [Min] [diameter]	0.12 in
Cable Opening [Min] [diameter]	3.05 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Termination	Solder
Voltage Rating	125 VAC

CONN PLUG FMALE MINI XLR 5P SLDR

Part	Mounting Type	Current Rating (Amps)	Color	Primary Material	Connector Type	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Shell Size - Insert	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shell Material	Contact Material	Shell Finish	Voltage Rating	Contact Finish - Mating	Features	Applications	Termination
Switchcraft Inc. TARA5FX	Free Hanging (In-Line), Right Angle	4 A	Black, Silver	Metal	Female Sockets, Plug	0.12 in	3.05 mm	3.81 mm	0.15 in	Mini XLR	Latch Lock	85 °C	-55 °C	Keyed	Copper Alloy	Copper Alloy	Nickel	125 VAC	Silver	Backshell, Cable Clamp, Ground, Strain Relief	Audio, Communication Systems, Industrial, Medical	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
