84-5231.2B40

Active

EAO

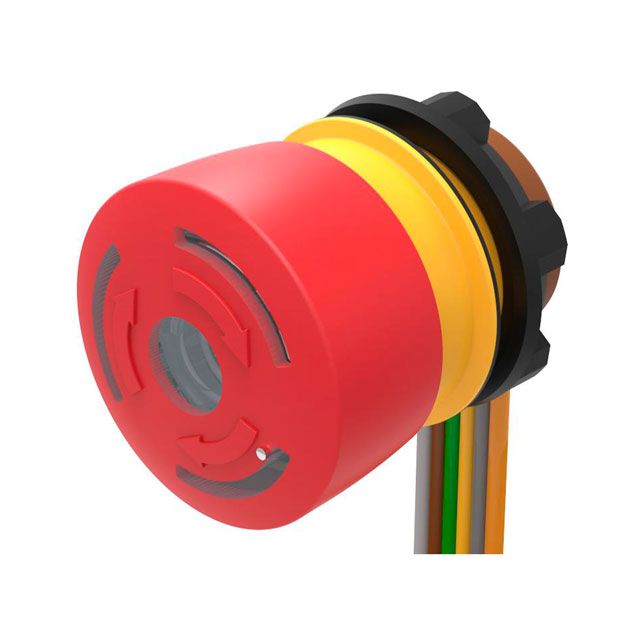

SWITCH ESTOP TWIST RESET 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH ESTOP TWIST RESET 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	84-5231.2B40	84-5231 Series

Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Features	Illuminated (Red)	Illuminated (Red)
Ingress Protection	IP67, IP65	IP67, IP65
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off
Termination Style	Cable Leads	Cable Leads, Quick Connect, Solder
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	250 V	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.23

SWITCH ESTOP TWIST RESET 5A 250V

Part	Ingress Protection	Switch Function	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Voltage Rating - DC	Circuit	Reset Operation	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Mounting Type	Termination Style	Termination Style
EAO 84-5231.2B40	IP65, IP67	On-Off	250 V	65 °C	-25 °C	Illuminated (Red)	Cable Leads	250 V	DPST-NO/NC	Twist	5 A	22.3 mm	Panel Mount, Front
EAO 84-5231.2B20	IP65, IP67	On-Off	250 V	65 °C	-25 °C	Illuminated (Red)	Quick Connect, Solder	250 V	DPST-NO/NC	Twist	5 A	22.3 mm	Panel Mount, Front	0.11 in	2.8 mm
