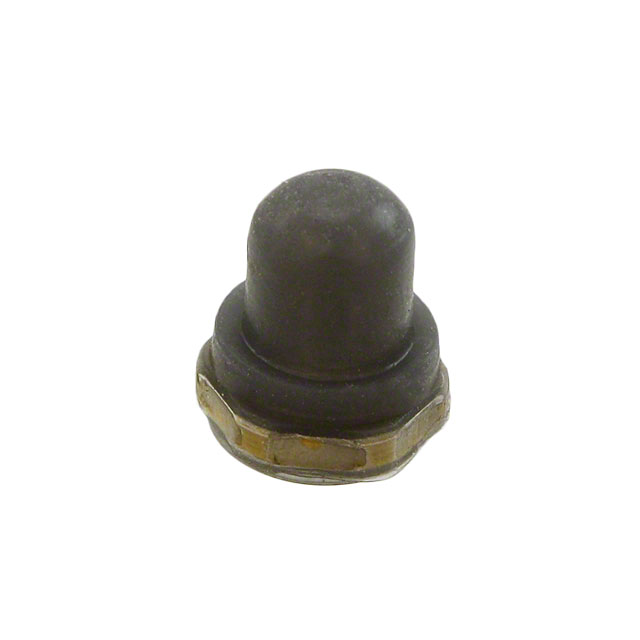

N5045 1

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT GRAY

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT GRAY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N5045 1	N5045 Series

Actuator Diameter [diameter]	0.125 in	0.125 in
Actuator Diameter [diameter]	3.18 mm	3.18 mm
Color	Gray	Gray, Black
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension [z]	7.54 mm	7.54 mm
Size / Dimension [z]	0.297 in	0.297 in
Thread Size	8-40 NS-2B	8-40 NS-2B
Type	Pushbutton, Full Boot	Pushbutton, Full Boot

PUSHBUTTON FULL BOOT GRAY

Part	Color	Mounting Feature	Ingress Protection	For Use With/Related Products	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Thread Size	Size / Dimension [z]	Size / Dimension [z]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Type
APM HEXSEAL N5045 1	Gray	Front of Panel	IP66/IP68	Multiple Series	0.125 in	3.18 mm	8-40 NS-2B	7.54 mm	0.297 in	Silicone Rubber	204 °C	-70 °C	Pushbutton, Full Boot
APM HEXSEAL N5045 12	Black	Front of Panel	IP66/IP68	Multiple Series	0.125 in	3.18 mm	8-40 NS-2B	7.54 mm	0.297 in	Silicone Rubber	204 °C	-70 °C	Pushbutton, Full Boot

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON FULL BOOT GRAY
