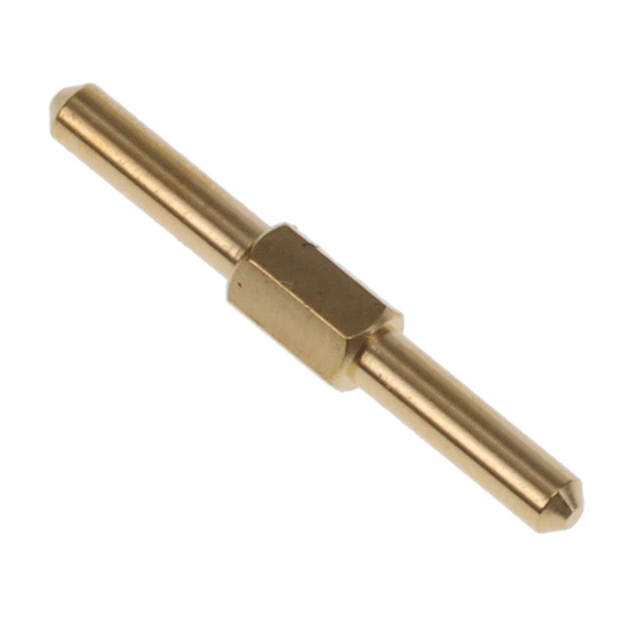

PRESS-FIT DOUBLE TAIL HEADER PIN
Deep-Dive with AI
Search across all available documentation for this part.
5277-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT DOUBLE TAIL HEADER PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5277-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.061 in |
| Flange Diameter [diameter] | 1.55 mm |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.091 in |
| Length - Above Flange | 2.31 mm |
| Length - Below Flange [x] | 3.78 mm |
| Length - Below Flange [x] | 0.149 " |
| Length - Overall [x] | 8.26 mm |
| Length - Overall [x] | 0.325 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.038 in |
| Pin Size - Above Flange [diameter] | 0.97 mm |
| Pin Size - Below Flange [diameter] | 0.038 in |
| Pin Size - Below Flange [diameter] | 0.97 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.46 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.38 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.85 | |||
| 500 | $ 1.72 | |||
| 1000 | $ 1.63 | |||
Description
General part information
5277-0 Series
PC Pin Terminal Connector Through Hole Gold 0.038" (0.97mm) Dia
