SEAF-40-06.0-L-06-1-A-K-TR

Active

Samtec Inc.

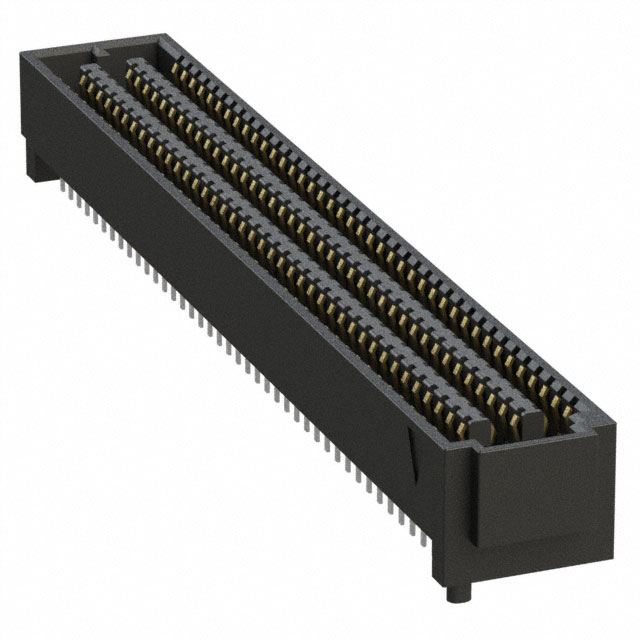

CONN HD ARRAY RCPT 240P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAF-40-06.0-L-06-1-A-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 240P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-40-06.0-L-06-1-A-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.238 in
Height Above Board	6.05 mm
Mated Stacking Heights	9.5 mm, 8 mm, 12.5 mm, 17 mm, 13 mm, 15 mm, 9 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	6
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-40 Series

Part	Number of Rows	Connector Type	Mounting Type	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights
Samtec Inc. SEAF-40-01-S-08-2-RA-GP-K-TR	8	High Density Array Female	Surface Mount Right Angle	320	Gold	0.76 Ám	30 Áin	Board Guide Mating Flange Pick and Place	0.511 in	12.99 mm	0.05 in	1.27 mm
Samtec Inc. SEAF-40-01-S-08-2-RA-TR	8	High Density Array Female	Surface Mount Right Angle	320	Gold	0.76 Ám	30 Áin	Board Guide	0.511 in	12.99 mm	0.05 in	1.27 mm
Samtec Inc. SEAF-40-05.0-S-05-2-A-K-TR	5	High Density Array Female	Surface Mount		Gold	0.76 Ám	30 Áin	Board Guide Pick and Place	0.199 in	5.05 mm	0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm
Samtec Inc. SEAF-40-01-L-04-2-RA-GP-K-TR		High Density Array Female	Surface Mount Right Angle	160	Gold	0.25 Ám	10 Áin	Board Guide Mating Flange Pick and Place	0.311 in	7.9 mm	0.05 in	1.27 mm
Samtec Inc. SEAF-40-05.0-L-05-2-A-K-TR	5	High Density Array Female	Surface Mount		Gold	0.25 Ám	10 Áin	Board Guide Pick and Place	0.199 in	5.05 mm	0.05 in	1.27 mm	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm
Samtec Inc. SEAF-40-06.0-L-06-1-A-K-TR	6	High Density Array Female	Surface Mount	240	Gold	0.25 Ám	10 Áin	Board Guide Pick and Place	0.238 in	6.05 mm	0.05 in	1.27 mm	8 mm 9 mm 9.5 mm 12.5 mm 13 mm 15 mm 17 mm 19 mm
Samtec Inc. SEAF-40-01-S-04-2-RA-GP-K-TR		High Density Array Female	Surface Mount Right Angle	160	Gold	0.76 Ám	30 Áin	Board Guide Mating Flange Pick and Place	0.311 in	7.9 mm	0.05 in	1.27 mm
Samtec Inc. SEAF-40-01-S-06-1-RA-TR	6	High Density Array Female	Surface Mount Right Angle	240	Gold	0.76 Ám	30 Áin	Board Guide	0.411 in	10.45 mm	0.05 in	1.27 mm
Samtec Inc. SEAF-40-01-S-06-2-RA-GP-TR	6	High Density Array Female	Surface Mount Right Angle	240	Gold	0.76 Ám	30 Áin	Board Guide Mating Flange	0.411 in	10.45 mm	0.05 in	1.27 mm
Samtec Inc. SEAF-40-01-S-04-2-RA-GP-TR		High Density Array Female	Surface Mount Right Angle	160	Gold	0.76 Ám	30 Áin	Board Guide Mating Flange	0.311 in	7.9 mm	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 12.27

Description

General part information

SEAF-40 Series

240 Position Connector High Density Array, Female Surface Mount Gold
