1305-0-15-15-47-27-04-0 - 1305-0-15-15-47-27-04-0

1305-0-15-15-47-27-04-0

Active
Mill-Max Manufacturing Corp.

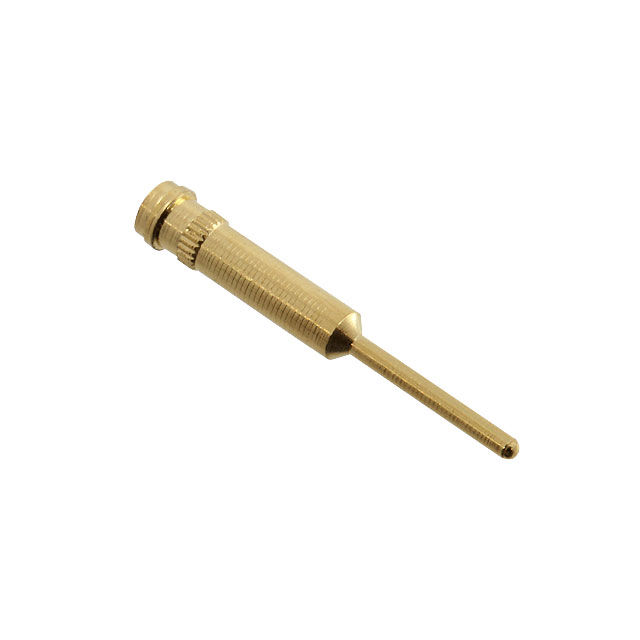

CONN PIN RCPT .025-.037 KNURL

Deep-Dive with AI

Search across all available documentation for this part.

1305-0-15-15-47-27-04-0 - 1305-0-15-15-47-27-04-0

1305-0-15-15-47-27-04-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .025-.037 KNURL

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification1305-0-15-15-47-27-04-0
Accepts Pin Diameter [Max]0.037 "
Accepts Pin Diameter [Max]0.94 mm
Accepts Pin Diameter [Min]0.64 mm
Accepts Pin Diameter [Min]0.025 "
Accepts Square Pin Size [diameter]0.64 mm
Accepts Square Pin Size [diameter]0.025 in
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialBeryllium Copper
Flange Diameter [diameter]1.83 mm
Flange Diameter [diameter]0.072 in
Length - Overall [x]12.34 mm
Length - Overall [x]0.486 "
Mounting Hole Diameter [diameter]0.061 "
Mounting Hole Diameter [diameter]1.55 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pin Hole Diameter [diameter]0.051 in
Pin Hole Diameter [diameter]1.3 mm
Socket Depth0.228 in
Socket Depth5.79 mm
Tail Diameter0.61 mm
Tail Diameter0.024 "
Tail TypeStandard Tail
TerminationKnurled, Press-Fit

1305-0 Series

PartContact Finish ThicknessContact Finish ThicknessTerminationOperating Temperature [Min]Operating Temperature [Max]Contact MaterialAccepts Square Pin Size [diameter]Accepts Square Pin Size [diameter]Tail TypePin Hole Diameter [diameter]Pin Hole Diameter [diameter]Tail DiameterTail DiameterContact FinishAccepts Pin Diameter [Max]Accepts Pin Diameter [Min]Accepts Pin Diameter [Max]Accepts Pin Diameter [Min]Socket DepthSocket DepthLength - Overall [x]Length - Overall [x]Mounting Hole Diameter [diameter]Mounting Hole Diameter [diameter]Flange Diameter [diameter]Flange Diameter [diameter]
Mill-Max Manufacturing Corp.
1305-0-15-15-47-27-04-0
0.76 Ám
30 Áin
Knurled
Press-Fit
-55 °C
125 °C
Beryllium Copper
0.64 mm
0.025 in
Standard Tail
0.051 in
1.3 mm
0.61 mm
0.024 "
Gold
0.037 "
0.64 mm
0.94 mm
0.025 "
0.228 in
5.79 mm
12.34 mm
0.486 "
0.061 "
1.55 mm
1.83 mm
0.072 in
Mill-Max Manufacturing Corp.
1305-0-15-01-47-27-04-0
0.76 Ám
30 Áin
Knurled
Press-Fit
-55 °C
125 °C
Beryllium Copper
0.64 mm
0.025 in
Standard Tail
0.051 in
1.3 mm
0.61 mm
0.024 "
Gold
0.037 "
0.64 mm
0.94 mm
0.025 "
0.228 in
5.79 mm
12.34 mm
0.486 "
0.061 "
1.55 mm
1.83 mm
0.072 in
Mill-Max Manufacturing Corp.
1305-0-15-80-47-09-04-0
Knurled
Press-Fit
-55 °C
125 °C
Beryllium Copper
0.64 mm
0.025 in
Standard Tail
0.051 in
1.3 mm
0.61 mm
0.024 "
0.037 "
0.64 mm
0.94 mm
0.025 "
0.228 in
5.79 mm
12.34 mm
0.486 "
0.061 "
1.55 mm
1.83 mm
0.072 in
Mill-Max Manufacturing Corp.
1305-0-15-80-47-14-04-0
0.25 Ám
10 Áin
Knurled
Press-Fit
-55 °C
125 °C
Beryllium Copper
0.64 mm
0.025 in
Standard Tail
0.051 in
1.3 mm
0.61 mm
0.024 "
Gold
0.037 "
0.64 mm
0.94 mm
0.025 "
0.228 in
5.79 mm
12.34 mm
0.486 "
0.061 "
1.55 mm
1.83 mm
0.072 in
Mill-Max Manufacturing Corp.
1305-0-15-01-47-14-04-0
0.25 Ám
10 Áin
Knurled
Press-Fit
-55 °C
125 °C
Beryllium Copper
0.64 mm
0.025 in
Standard Tail
0.051 in
1.3 mm
0.61 mm
0.024 "
Gold
0.037 "
0.64 mm
0.94 mm
0.025 "
0.228 in
5.79 mm
12.34 mm
0.486 "
0.061 "
1.55 mm
1.83 mm
0.072 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.57
10$ 0.50
25$ 0.46
50$ 0.43
100$ 0.41
250$ 0.38
500$ 0.36
1000$ 0.30
2500$ 0.31
3000$ 0.27

Description

General part information

1305-0 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit, Knurled
