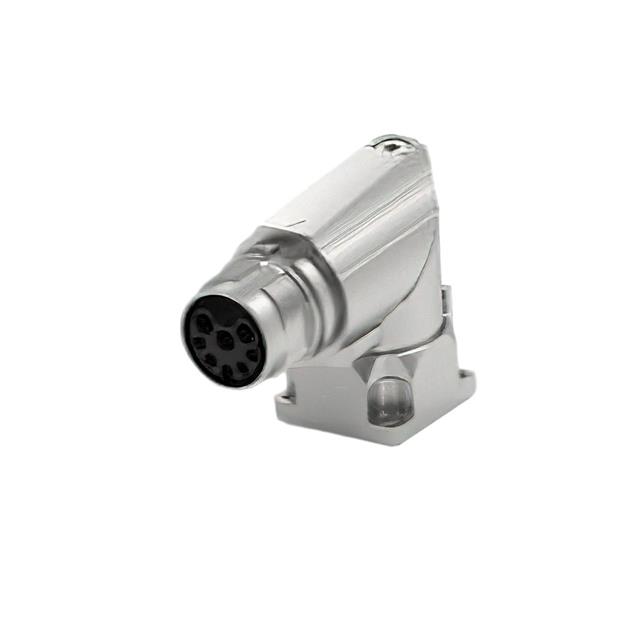

BGC906N0000051A000
ActiveTE Intercontec
CONN RCPT HSG MALE 9P PNL MT RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGC906N0000051A000
ActiveTE Intercontec
CONN RCPT HSG MALE 9P PNL MT RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGC906N0000051A000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Backshell, Rotatable |
| Housing Color | Silver |
| Includes | 1 Backshell, 1 O-Ring, 1 Connector |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Right Angle, Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | PE |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 5 |
| Number of Positions [custom] | 9 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Chromate |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M17-9 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.80 | |
| 10 | $ 16.94 | |||
Description
General part information
BGC90 Series
9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
