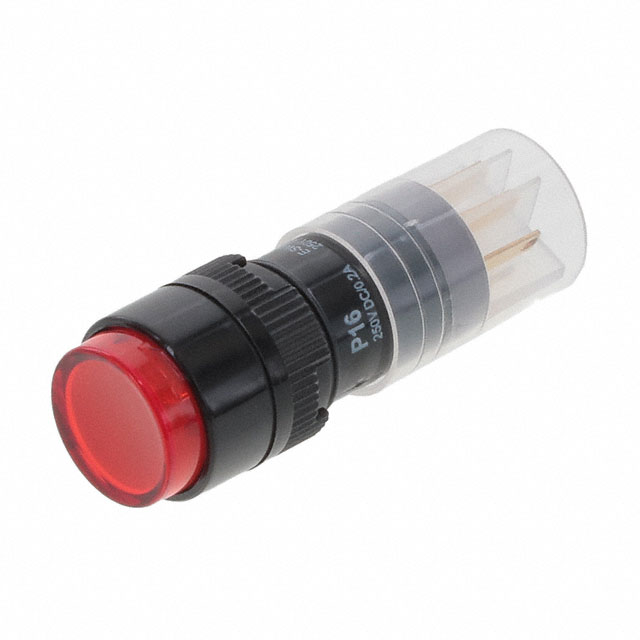

P16OAR110RED

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 5A/250VAC; 6A/24VDC

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST NC + NO; 5A/250VAC; 6A/24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	P16OAR110RED

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	8 A, 6 A
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Circuit	Current Rating (Amps)	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Mechanical Life	Color - Actuator/Cap	Type	Termination Style	Voltage Rating - DC	Actuator Marking
E-Switch P16OAR110BLU	SPDT	6 A 8 A	Panel Mount Front	16 mm	125 V	50000 Cycles	55 °C	-20 C	On-Mom	Button Round	100000 Cycles	Blue	Standard	Quick Connect - 0.110" (2.8mm)	24 V	No Marking
E-Switch P16OAR110YEL	SPDT	6 A 8 A	Panel Mount Front	16 mm	125 V	50000 Cycles	55 °C	-20 C	On-Mom	Button Round	100000 Cycles	Yellow	Standard	Quick Connect - 0.110" (2.8mm)	24 V	No Marking
E-Switch P16OAR110RED	SPDT	6 A 8 A	Panel Mount Front	16 mm	125 V	50000 Cycles	55 °C	-20 C	On-Mom	Button Round	100000 Cycles	Red	Standard	Quick Connect - 0.110" (2.8mm)	24 V	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
