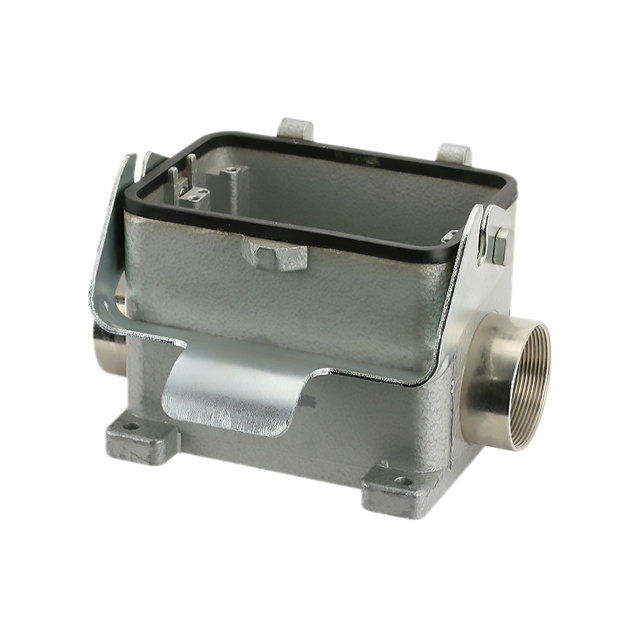

C14610N0488031

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE48 M40

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE48 M40

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0488031

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E48
Size / Dimension [x]	132 mm
Size / Dimension [x]	5.197 in
Size / Dimension [y]	120 mm
Size / Dimension [y]	4.724 in
Size / Dimension [z]	100 mm
Size / Dimension [z]	3.937 "
Style	Side Entry

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Lock Location	Size	Style	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Amphenol Tuchel Industrial C14610N0488031	Base - Box Mount	100 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	E48	Side Entry	IP65 - Dust Tight Water Resistant	120 mm	132 mm	100 mm	5.197 in	3.937 "	4.724 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 131.11

General part information

Base - Box Mount Connector Side Entry M40 E48 IP65 - Dust Tight, Water Resistant
