WP934EB/2ID

Active

Kingbright

LED CBI 3MM BI-LVL RED DIFF RA

WP934EB/2ID

Active

Kingbright

LED CBI 3MM BI-LVL RED DIFF RA

Description Specifications Series Pricing CAD Documents

Description

General part information

WP934 Series

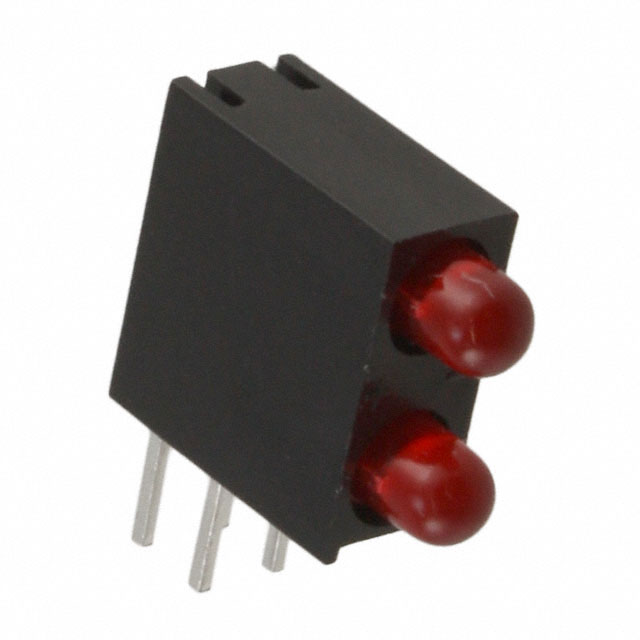

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	WP934EB/2ID

Color	Red
Color Count	2 count
Configuration	High
Configuration Count	2
Current	20 mA
Lens Size	3 mm
Lens Size (Code)	T-1
Lens Style	Round, Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	22.5 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	40 °
Voltage Rating	2 V
Wavelength - Peak	627 nm

WP934 Series

Part	Mounting Type	Configuration	Current	Lens Size	Lens Size (Code)	Viewing Angle	Voltage Rating	Color	Lens Style	Lens Type	Millicandela Rating	Wavelength - Peak	Color Count	Lens Diameter	Wide	Configuration Count
Kingbright WP934RS/ID	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	2 V	Red	Domed Top Round	Diffused Tinted	30 mcd	627 nm
Kingbright WP934TV/4LID	Right Angle Through Hole		30 mA			40 °	1.7 V	Red	Domed Top Round	Diffused Tinted	0.6 mcd	625 nm	4 count	2.9 mm	4
Kingbright WP934SB/4YD	Right Angle Through Hole	High	30 mA	3 mm	T-1	40 °	2.1 V	Yellow	Domed Top Round	Diffused Tinted	15 mcd	590 nm	4 count			4
Kingbright WP934SB/4LGD	Right Angle Through Hole	High	25 mA			40 °	1.9 V	Green	Domed Top Round	Diffused Tinted	2 mcd	568 nm	4 count	2.9 mm		4
Kingbright WP934RS/GD	Right Angle Through Hole	Single	25 mA	3 mm	T-1	40 °	2.2 V	Green	Domed Top Round	Diffused Tinted	30 mcd	565 nm
Kingbright WP934EW/SRD	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	1.85 V	Red	Domed Top Round	Diffused Tinted	400 mcd	655 nm
Kingbright WP934EB/2ID	Right Angle Through Hole	High	20 mA	3 mm	T-1	40 °	2 V	Red	Domed Top Round	Diffused Tinted	22.5 mcd	627 nm	2 count			2
Kingbright WP934EW/ID	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	2 V	Red	Domed Top Round	Diffused Tinted	30 mcd	627 nm
Kingbright WP934EW/YD	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	2.1 V	Yellow	Domed Top Round	Diffused Tinted	15 mcd	590 nm
Kingbright WP934EB/2SURDK	Right Angle Through Hole	High	20 mA			50 °	1.95 V	Red	Domed Top Round	Diffused Red	900 mcd	645 nm		2.9 mm		2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

WP934EB/2ID | Datasheet
