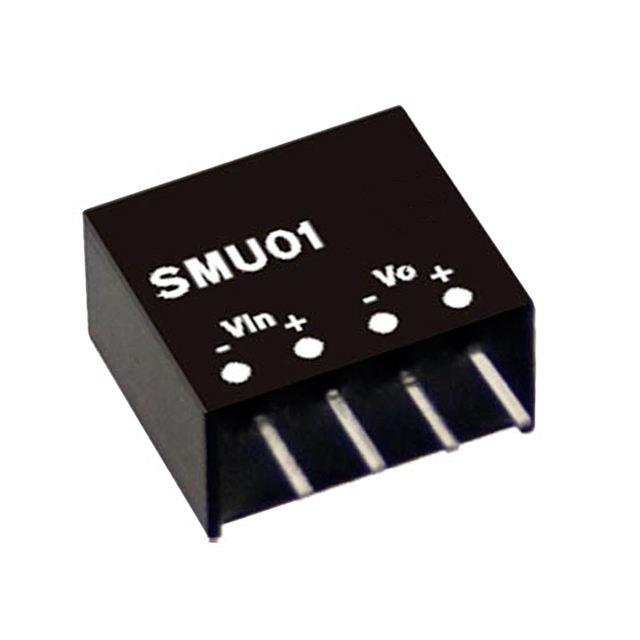

SMU01N-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMU01N-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMU01N-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 84 mA |
| Efficiency | 77 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SIP Module |
| Size / Dimension [x] | 11.6 mm |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [y] | 6.1 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.87 | |
| 5 | $ 3.75 | |||
Description
General part information
SMU01 Series
Isolated Module DC DC Converter 1 Output 12V 84mA 21.6V - 26.4V Input
