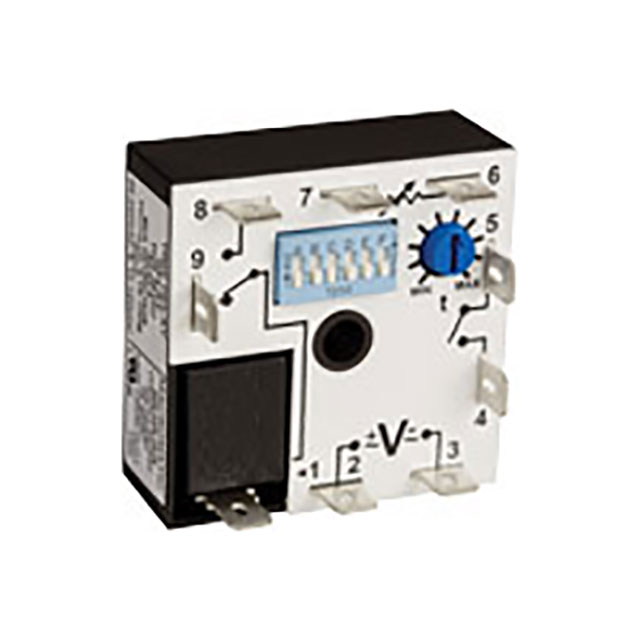

THR-3816U

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100MIN 10A 240V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100MIN 10A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	THR-3816U

Contact Rating @ Voltage	10 A, 240 VAC, 28 VDC
Delay Time [Max]	100 Min
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	Chassis Mount
Relay Type	Mechanical Relay
Termination Style	Quick Connect
Timing Adjustment Method	DIP Switches
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC, 125 VDC
Voltage - Supply [Min]	24 VAC, 12 V

RELAY TIME DELAY 100MIN 10A 240V

Part	Timing Adjustment Method	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Delay Time [Max]	Delay Time [Min]	Relay Type	Timing Initiate Method	Contact Rating @ Voltage	Mounting Type
Macromatic Industrial Controls THR-3816U	DIP Switches	Quick Connect	125 VDC, 240 VAC	12 V, 24 VAC	Programmable (Multi-Function)	100 Min	0.1 Sec	Mechanical Relay	Input Voltage, Trigger Signal	10 A, 28 VDC, 240 VAC	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 86.58

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Min Delay 10A @ 240VAC/28VDC Chassis Mount

Technical documentation and resources

No documents available
