C14611R0106011

Active

Amphenol Tuchel Industrial

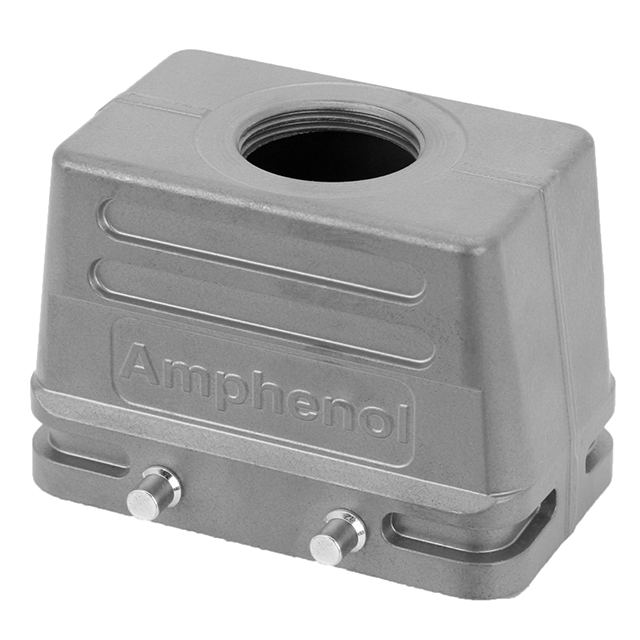

CONN HOOD TOP ENTRY SZE10 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE10 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C14611R0106011

Connector Type	Hood
Housing Finish	EMC Coating
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51 mm
Size / Dimension [z]	2.008 "
Style	Top Entry
Thread Size	M32

Part	Style	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Ingress Protection	Lock Location	Housing Material	Connector Type	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Housing Color
Amphenol Tuchel Industrial C14611R0106011	Top Entry	M32	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	125 °C	-40 °C	EMC Coating	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	Hood	E10
Amphenol Tuchel Industrial C14611R0105001	Side Entry	M25	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	125 °C	-40 °C	EMC Coating	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	Hood	E10
Amphenol Tuchel Industrial C14611R0106018	Top Entry		73 mm	43 mm			70 mm		125 °C	-40 °C	EMC Coating	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Hood	E10	2.874 in	1.693 in	2.756 in	Gray
Amphenol Tuchel Industrial C14611R0106508	Top Entry	M25	73 mm	43 mm			70 mm		125 °C	-40 °C	EMC Coating	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Hood	E10	2.874 in	1.693 in	2.756 in	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 14.46

General part information

Hood Connector Top Entry M32 E10 IP65 - Dust Tight, Water Resistant
