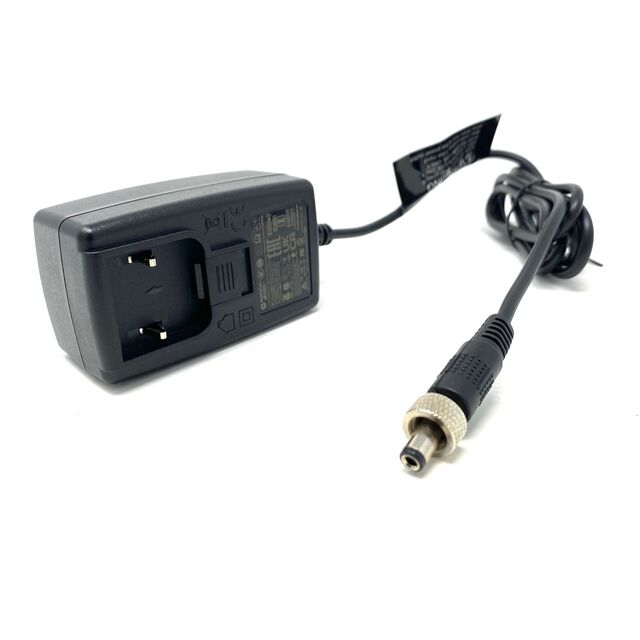

WR9QA3000LLPCIMR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QA3000LLPCIMR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QA3000LLPCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	13.8 mm
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

WR9QA3000 Series

Part	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Form	Power (Watts)	Efficiency	Voltage - Output	Approval Agency	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Input Type	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Cord Length	No Load Power Consumption	Output Connector [z]
GlobTek, Inc. WR9QA3000LLPCIMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	13.8 mm	2.5 mm 5.5 mm	Barrel Plug	Multi-Blade	-20 C	40 °C
GlobTek, Inc. WR9QA3000USBC3MNA-CIMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical		3.05 m	3 A	Multi-Blade (Single Blade Included)		90 VAC	264 VAC	75 mW			USB C Receptacle	Multi-Blade (Single Blade Included)	-20 C	40 °C	60335-1 60601-1 60950-1 62368-1	10 ft
GlobTek, Inc. WR9QA3000LCP-IMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	11 mm	2.5 mm 5.5 mm	Barrel Plug	Multi-Blade	-10 °C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
GlobTek, Inc. WR9QA3000USBC-CIMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	Level VI	5 V	CB CE LPS	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC	75 mW			USB C	Multi-Blade	-20 C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
GlobTek, Inc. WR9QA3000USBC-IMR6B	International	35.3 mm	74.4 mm	2.93 in	41 mm	1.61 "	1.39 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	CB CCC CE EAC ETL LPS PSE	Household Appliances ITE (Commercial) Medical			3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC				USB C Receptacle	Multi-Blade	0 °C	40 °C	60335-1 60601-1 60950-1 62368-1		100 mW
GlobTek, Inc. WR9QA3000KCP-CIMR6B	International	34 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.34 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	11 mm	1.35 mm 3.5 mm	Barrel Plug	Multi-Blade	-10 °C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
GlobTek, Inc. WR9QA3000LLPCIMEUR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	13.8 mm	2.5 mm 5.5 mm	Barrel Plug	Multi-Blade	-20 C	40 °C
GlobTek, Inc. WR9QA3000EIAJ1NAIMR6	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical		1.83 m	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW		0.7 mm 2.35 mm	Barrel Plug	Multi-Blade	-20 C	40 °C		72 in		9.5 mm
GlobTek, Inc. WR9QA3000USBCRCIMR6W	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC	75 mW			USB C Receptacle	Multi-Blade	-20 C	40 °C
GlobTek, Inc. WR9QA3000USBCCEUR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC	75 mW			USB C Receptacle	Multi-Blade	-20 C	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 12.35

Description

General part information

WR9QA3000 Series

5V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
