H100 Series

Part	Configuration	Lens Size	Lens Size (Code)	Voltage Rating	Color	Lens Style	Viewing Angle	Wavelength - Peak	Millicandela Rating	Mounting Type	Lens Type	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Voltage Rating (Red)	Voltage Rating - Color	Voltage Rating (Green)	Wavelength - Peak (2)	Wavelength - Peak (1)	Current
Bivar Inc. H100CRD	Single	3 mm	T-1	1.7 V	Red	Domed Top Round	45 °	655 nm	6 mcd	Right Angle Through Hole	Diffused
Bivar Inc. H100CHDL	Single	3 mm	T-1	1.8 V	Red	Domed Top Round	45 °	635 nm	6 mcd	Right Angle Through Hole	Diffused
Bivar Inc. H100CBC	Single	3 mm	T-1		Green Red	Domed Top Round	45 °			Right Angle Through Hole	Diffused White	Green Red	30 mcd	30 mcd	2 V	Green Red	2.2 V	635 nm	568 nm	30 mA

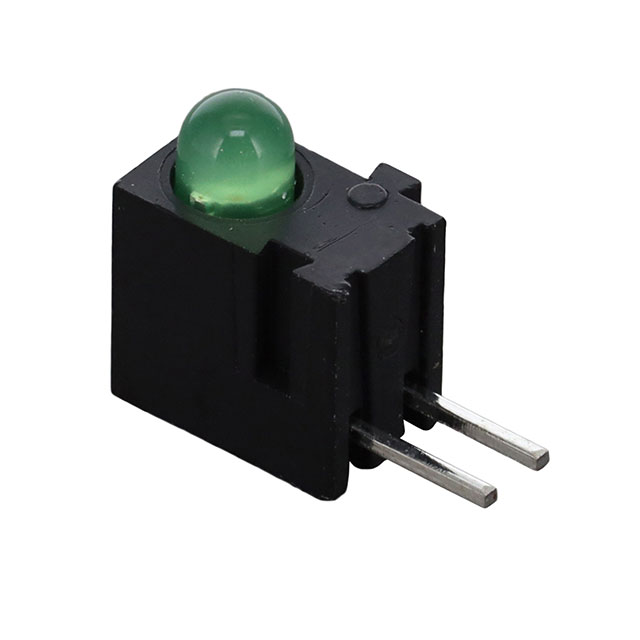

Bivar Inc. H100CGD	Single	3 mm	T-1	2.2 V	Green	Domed Top Round	45 °	565 nm	30 mcd	Right Angle Through Hole	Diffused

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
