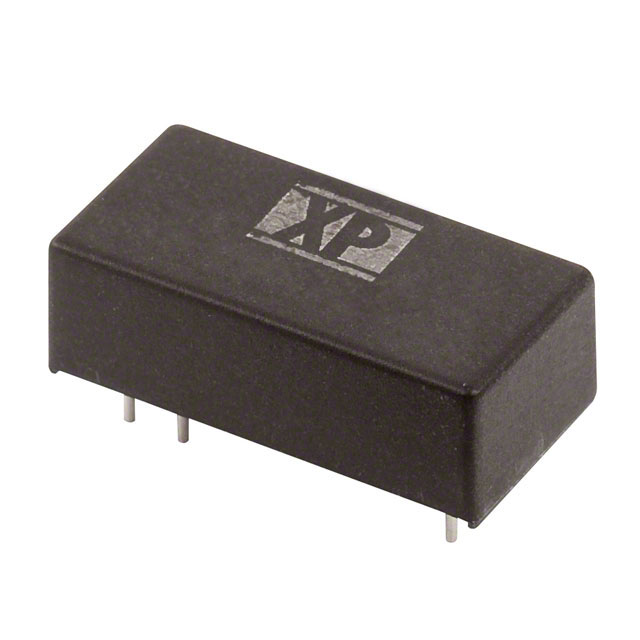

LDU2030S500
ObsoleteXP POWER
LED DRIVER CC BUCK 2-28V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDU2030S500
ObsoleteXP POWER
LED DRIVER CC BUCK 2-28V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDU2030S500 |
|---|---|
| Approval Agency | EN |
| Current - Output (Max) [Max] | 500 mA |
| Dimming | Analog, PWM |
| Efficiency | 95 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-DIP Module, 4 Leads |
| Power (Watts) | 14 Watts |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 10.2 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [z] | 0.27 " |
| Size / Dimension [z] | 6.9 mm |
| Topology | Buck |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 7 V |
| Voltage - Output [Max] | 28 V |
| Voltage - Output [Min] | 2 V |
| Weight | 0.006 lb |
| Weight | 2.72 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.50 | |
Description
General part information
LDU2030 Series
500mA 2 ~ 28V Constant Current LED Driver Buck Topology 1 Output
