SESDT Series

Rectangular Cable Assemblies 0.80 mm Double Row Tiger Eye Discrete Wire Teflon Cable Assembly, Socket

Part	Cable Termination	Color	Contact Finish Thickness	Number of Positions	Shielding	Connector Type	Number of Rows	Features	Pitch - Connector	Contact Finish

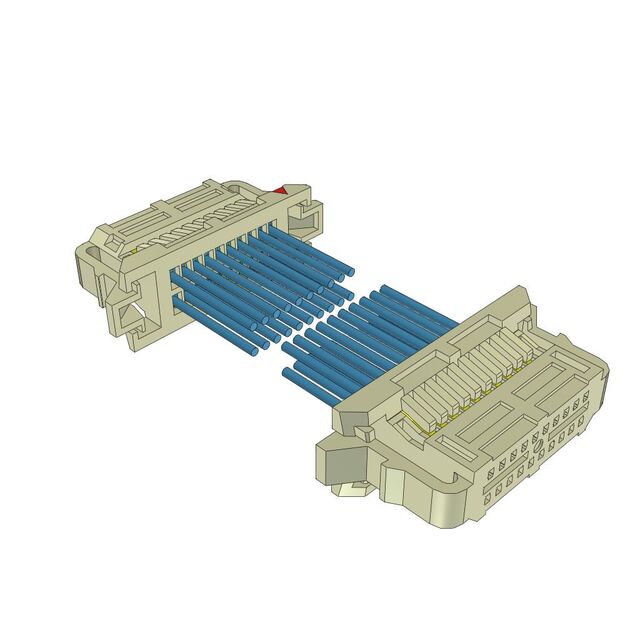

Samtec Inc. SESDT-10-32-G-18.0-L1	Crimp	Blue Individual	10 Ąin	20	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-15-32-G-12.3-L1	Crimp	Blue Individual	10 Ąin	30	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-05-32-G-24.0-L1	Crimp	Blue Individual	10 Ąin	10	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-10-32-G-18.0-L3	Crimp	Blue Individual	10 Ąin	20	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-15-32-G-10.0-L1	Crimp	Blue Individual	10 Ąin	30	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-20-32-G-98.4-L	Crimp	Blue Individual	10 Ąin	40	Unshielded	Socket to Cable	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-15-32-G-05.0-L2	Crimp	Blue Individual	10 Ąin	30	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-15-32-G-20.0-L4	Crimp	Blue Individual	10 Ąin	30	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-20-32-G-20.0-L	Crimp	Blue Individual	10 Ąin	40	Unshielded	Socket to Cable	2	Latch Lock	0.031 in	Gold
Samtec Inc. SESDT-10-32-G-20.0-L1	Crimp	Blue Individual	10 Ąin	20	Unshielded	Socket to Socket	2	Latch Lock	0.031 in	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
