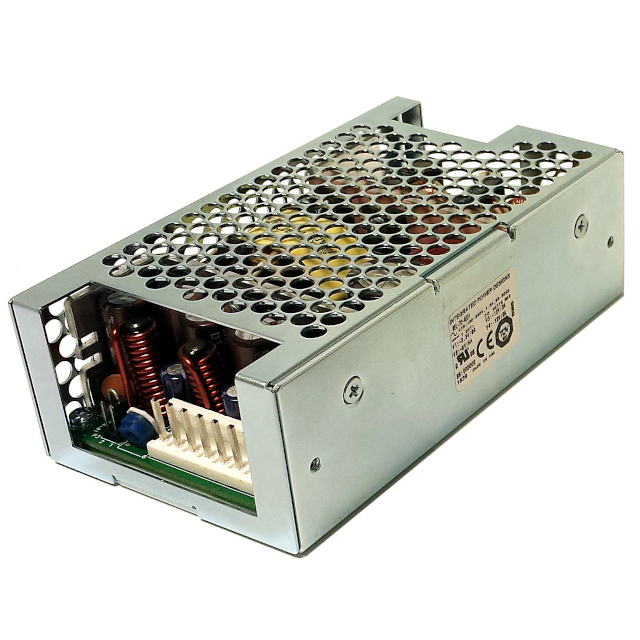

1011196CHCO

Active

Integrated Power Designs

REL-70-1005 CHCO

Search across all available documentation for this part.

Active

Integrated Power Designs

REL-70-1005 CHCO

Technical Specifications

Parameters and characteristics for this part

Specification	1011196CHCO

Applications	Industrial, Laboratory, Medical, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	4.7 A
Efficiency	78 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	70 W
Size / Dimension [x]	4.79 "
Size / Dimension [x]	121.6 mm
Size / Dimension [y]	2.62 "
Size / Dimension [y]	66.5 mm
Size / Dimension [z]	1.48 "
Size / Dimension [z]	37.6 mm
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Output 1	15 V

Part	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Standard Number	Mounting Type	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Number of Outputs	Features	Efficiency
Integrated Power Designs 1011196CHCO	Enclosed	70 W	70 °C	0 °C	CE cURus TUV UKCA	15 V	60601-1 62368-1	Chassis Mount	Industrial ITE (Commercial) Laboratory Medical	4.79 "	121.6 mm	1.48 "	2.62 "	66.5 mm	37.6 mm	4.7 A	1	Adjustable Output Remote Sense Universal Input	78 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
