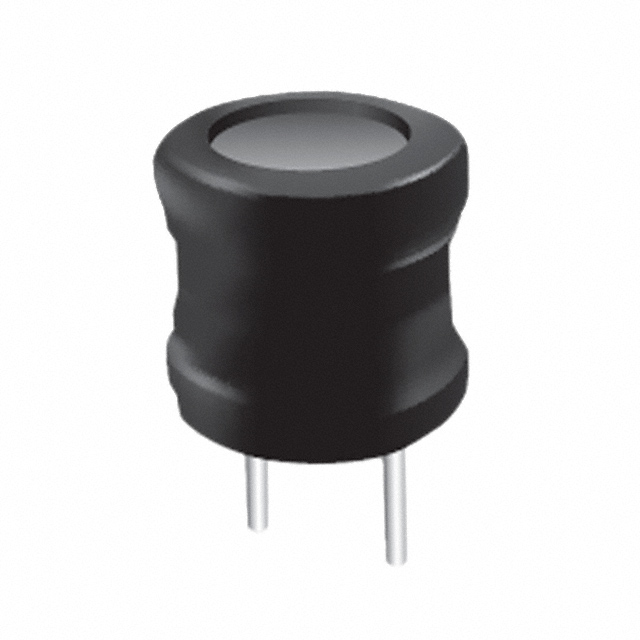

6100-100K-RC

Active

Bourns Inc.

FIXED IND 10UH 6.33A 0.02OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6100-100K-RC

Active

Bourns Inc.

FIXED IND 10UH 6.33A 0.02OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6100-100K-RC

Current Rating (Amps)	6.33 A
DC Resistance (DCR)	20 mOhm
Frequency - Self Resonant	21 MHz
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Inductance	10 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Shielding	Unshielded
Size / Dimension [diameter]	11 mm
Size / Dimension [diameter]	0.433 "
Supplier Device Package	Radial
Tolerance	10 %
Type	Wirewound, Drum Core

6100 Series

Part	Frequency - Self Resonant	Package / Case	Shielding	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	DC Resistance (DCR)	Material - Core	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Inductance Frequency - Test	Size / Dimension [diameter]	Size / Dimension [diameter]	Supplier Device Package	Mounting Type	DC Resistance (DCR) [Max]
Bourns Inc. 6100-100K-RC	21 MHz	Radial Vertical Cylinder	Unshielded	10 µH	0.413 in	10.5 mm	Drum Core Wirewound	20 mOhm	Ferrite	10 %	125 °C	-40 °C	6.33 A	100 kHz	11 mm	0.433 "	Radial	Through Hole
Bourns Inc. 6100-472K-RC	800 kHz	Radial Vertical Cylinder	Unshielded	4.7 mH	0.413 in	10.5 mm	Drum Core Wirewound	8.23 Ohm	Ferrite	10 %	125 °C	-40 °C	0.29 A	100 kHz	11 mm	0.433 "	Radial	Through Hole
Bourns Inc. 6100-222K-RC	1.1 MHz	Radial Vertical Cylinder	Unshielded	2.2 mH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	0.42 A	100 kHz	11 mm	0.433 "	Radial	Through Hole	4.26 Ohm
Bourns Inc. 6100-681K-RC	2 MHz	Radial Vertical Cylinder	Unshielded	680 µH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	760 mA	100 kHz	11 mm	0.433 "	Radial	Through Hole	1.09 Ohm
Bourns Inc. 6100-821K-RC	1.8 MHz	Radial Vertical Cylinder	Unshielded	820 µH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	690 mA	100 kHz	11 mm	0.433 "	Radial	Through Hole	1.44 Ohm
Bourns Inc. 6100-391K-RC	2.8 MHz	Radial Vertical Cylinder	Unshielded	390 µH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	1 A	100 kHz	11 mm	0.433 "	Radial	Through Hole	640 mOhm
Bourns Inc. 6100-330K-RC	10.5 MHz	Radial Vertical Cylinder	Unshielded	33 µH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	3.39 A	100 kHz	11 mm	0.433 "	Radial	Through Hole	59 mOhm
Bourns Inc. 6100-122K-RC	1.4 MHz	Radial Vertical Cylinder	Unshielded	1.2 mH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	570 mA	100 kHz	11 mm	0.433 "	Radial	Through Hole	2.2 Ohm
Bourns Inc. 6100-820K-RC	6.3 MHz	Radial Vertical Cylinder	Unshielded	82 µH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C		100 kHz	11 mm	0.433 "	Radial	Through Hole	150 mOhm
Bourns Inc. 6100-272K-RC	1 MHz	Radial Vertical Cylinder	Unshielded	2.7 mH	0.413 in	10.5 mm	Drum Core Wirewound		Ferrite	10 %	125 °C	-40 °C	0.38 A	100 kHz	11 mm	0.433 "	Radial	Through Hole	5.41 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.78
		10	$ 0.64
		25	$ 0.60
		50	$ 0.56
		160	$ 0.51
		320	$ 0.48
		640	$ 0.45
		1120	$ 0.43
		2560	$ 0.40

Description

General part information

6100 Series

10 µH Unshielded Drum Core, Wirewound Inductor 6.33 A 20mOhm Max Radial, Vertical Cylinder
