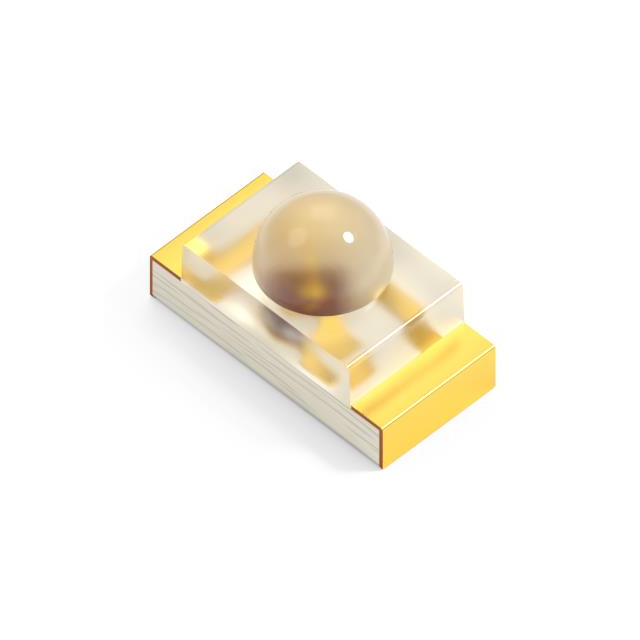

XZMOK53W-8

Active

SunLED

LED ORANGE CLEAR CHIP SMD

Search across all available documentation for this part.

Active

SunLED

LED ORANGE CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Configuration	Viewing Angle	Wavelength - Peak	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Height (Max) [Max]	Lens Color	Wavelength - Dominant	Lens Style	Millicandela Rating	Current - Test	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Height (Max) [Max] [z]	Lens Size [y]	Lens Size [x]
SunLED XZMOK53W-8	Standard	60 °	610 nm	1608 Metric	0603	2.1 V	0.7 mm	0.95 mm	Colorless	601 nm	Round with Domed Top	497 mcd	20 mA	Clear	1.6 mm	0.8 mm	0603 (1608 Metric)	Surface Mount
SunLED XZMOK53W-3	Standard	120 °	610 nm		2-SMD	2.1 V			Colorless	601 nm	Rectangle with Flat Top	178 mcd	20 mA	Clear	1.6 mm	0.8 mm	0603 (1608 Metric)	Surface Mount	0.45 mm	0.8 mm	1.1 mm
SunLED XZMOK53W-1	Standard	120 °	610 nm		2-SMD	2.1 V			Colorless	601 nm	Rectangle with Flat Top	178 mcd	20 mA	Clear	1.6 mm	0.8 mm	0603 (1608 Metric)	Surface Mount		0.8 mm	1.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Orange 601nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
