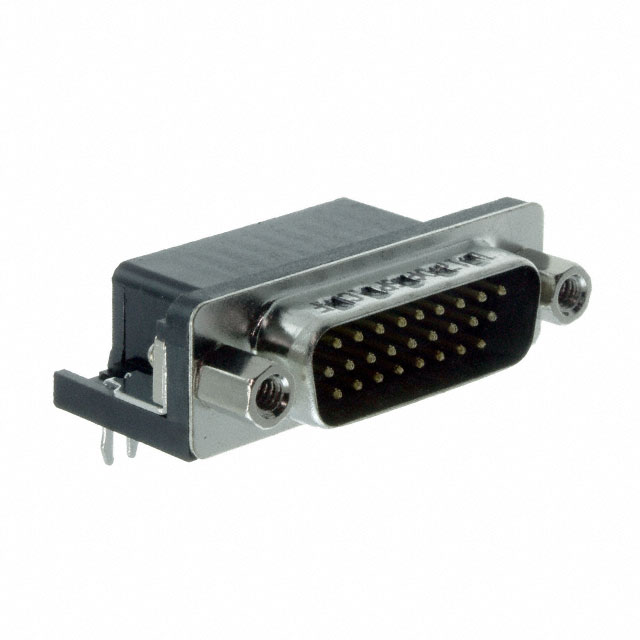

L717HDA26PD1CH4F

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717HDA26PD1CH4F

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717HDA26PD1CH4F

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Tabs, Board Lock, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	250 VDC

L717HDA26 Series

Part	Contact Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Form	Contact Finish	Voltage Rating	Current Rating (Amps)	Connector Type	Flange Feature	Contact Material	Number of Positions	Termination	Mounting Type	Number of Rows	Dielectric Material	Color	Connector Style	Contact Finish Thickness	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717HDA26PD1CH4F	Signal	Board Lock Grounding Indents Grounding Tabs	105 ░C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Female Screwlock (4-40) Mating Side	Brass	26	Solder	Through Hole Right Angle	3	Thermoplastic Glass Filled	Black	D-Sub High Density	Flash	8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDA26PD1C4F	Signal	Grounding Indents	155 °C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Female Screwlock (4-40) Mating Side	Brass	26	Solder	Through Hole Right Angle	3	Thermoplastic Glass Filled		D-Sub High Density	Flash	8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDA26POL2	Signal	Grounding Indents	105 ░C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Housing/Shell (Unthreaded)	Brass	26	Solder	Through Hole	3	Thermoplastic Glass Filled	Black	D-Sub High Density	Flash
Amphenol ICC (Commercial Products) L717HDA26PD1CH4FT	Signal	Board Lock Grounding Indents	125 °C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Female Screwlock (4-40) Mating Side	Brass	26	Solder	Through Hole Right Angle	3	Thermoplastic Glass Filled		D-Sub High Density	Flash	8.89 mm	0.35 in
Amphenol ICC (Commercial Products) L717HDA26PD1CH3RC309	Signal	Board Lock Grounding Indents Grounding Tabs	105 ░C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Board Side (M3)	Brass	26	Solder	Through Hole Right Angle	3	Thermoplastic Glass Filled	Black	D-Sub High Density		8.89 mm	0.35 in	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDA26PC309	Signal	Grounding Indents	155 °C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Housing/Shell (Unthreaded)	Brass	26		Free Hanging (In-Line)	3	Thermoplastic Glass Filled	Black	D-Sub High Density				0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDA26PD1CH3FC309	Signal	Board Lock Grounding Indents Grounding Tabs	105 ░C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Female Screwlock (M3) Mating Side	Brass	26	Solder	Through Hole Right Angle	3	Thermoplastic Glass Filled	Black	D-Sub High Density		8.89 mm	0.35 in	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDA26PVFM	Signal	Grounding Indents	155 °C	-55 °C	UL94 V-0	2	(DA A) High Density	Stamped	Gold	250 VDC	3 A	Male Pins Plug	Female Screwlock (M3) Mating Side	Brass	26		Free Hanging (In-Line)	3	Thermoplastic Glass Filled		D-Sub High Density	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.23
		10	$ 2.93
		25	$ 2.78
		70	$ 2.71
		140	$ 2.58
		280	$ 2.26
		490	$ 2.20
		980	$ 1.87
		2450	$ 1.74

Description

General part information

L717HDA26 Series

26 Position D-Sub, High Density Plug, Male Pins Connector
