WLTM0612QLR016FNR

Active

LITTELFUSE

2T WLTM0612 1.5W 50PPM 16 MOHM ±1.0%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WLTM0612QLR016FNR

Active

LITTELFUSE

2T WLTM0612 1.5W 50PPM 16 MOHM ±1.0%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLTM0612QLR016FNR

Features	High Voltage, Current Sense
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Wide 1206 (3216 Metric), 0612
Power (Watts)	1.5 W
Resistance	16 mOhms
Size / Dimension [x]	1.7 mm
Size / Dimension [x]	0.067 in
Size / Dimension [y]	0.13 in
Size / Dimension [y]	3.3 mm
Supplier Device Package	0612
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

WLTM0612QLR016F Series

2T WLTM0612 1.5W 50ppm 16 mOhm ±1.0%

Part	Supplier Device Package	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance	Tolerance
LITTELFUSE WLTM0612QLR016FNR	0612	Current Sense, High Voltage	155 °C	-55 °C	2	50 ppm/°C	0.85 mm	0.033 "	Wide 1206 (3216 Metric), 0612	1.5 W	0.13 in	3.3 mm	1.7 mm	0.067 in	16 mOhms	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.56
		10	$ 0.38
		25	$ 0.31
		50	$ 0.27
		100	$ 0.20
		250	$ 0.18
		500	$ 0.15
		1000	$ 0.11
	Digi-Reel®	1	$ 0.56
		10	$ 0.38
		25	$ 0.31
		50	$ 0.27
		100	$ 0.20
		250	$ 0.18
		500	$ 0.15
		1000	$ 0.11
	Tape & Reel (TR)	5000	$ 0.10

Description

General part information

WLTM0612QLR016F Series

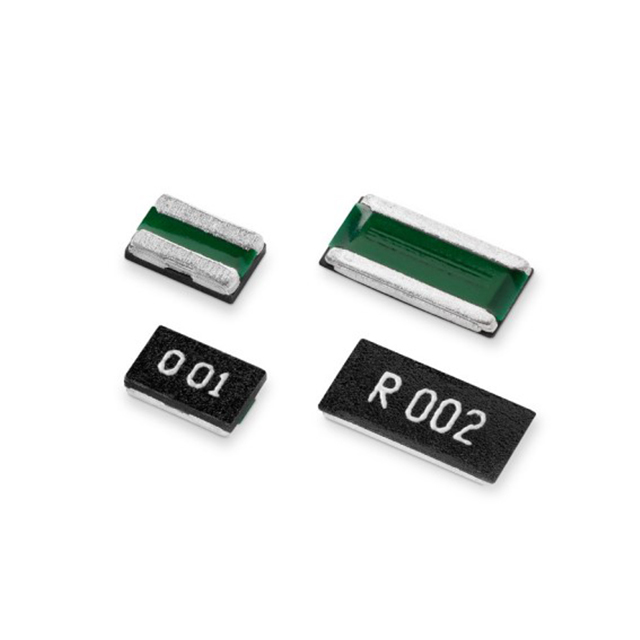

Littelfuse WLTM Series low ohm current sense resistor is designed with long term stability in mind. This series is durable, excels at heat dissipation. The small package is optimal for most applications.
