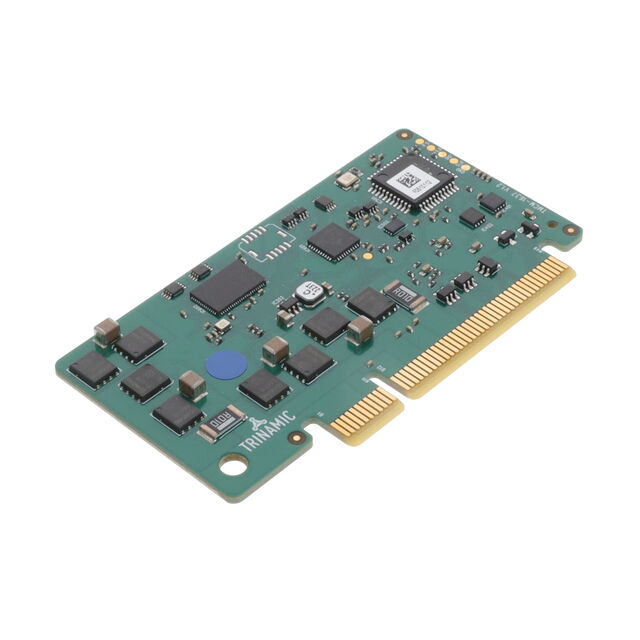

TMCM-1637-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 5A/24V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1637-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 5A/24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1637-CANOPEN | TMCM-1637 Series |
|---|---|---|
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 5 A | 5 A |
| Interface | CAN, SPI, RS-485 | CAN, SPI, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Board | Board |
| Voltage - Load [Max] | 30 V | 30 V |
| Voltage - Load [Min] | 10 V | 10 V |
| Voltage - Supply [Max] | 30 VDC | 30 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 232.40 | |
TMCM-1637 Series
STEPPER DRIVER 5A/24V
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Motor Type | Type | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Control / Drive Type | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1637-CANOPEN | 10 V | 30 V | Stepper | Board | 5 A | -30 ░C | 60 °C | Chassis Mount | 30 VDC | 10 VDC | Bipolar, Stepper | CAN, RS-485, SPI |
Analog Devices Inc./Maxim Integrated TMCM-1637-TMCL | 10 V | 30 V | Stepper | Board | 5 A | -30 ░C | 60 °C | Chassis Mount | 30 VDC | 10 VDC | Bipolar, Stepper | CAN, RS-485, SPI |
Description
General part information
TMCM-1637 Series
Stepper, Bipolar 10 ~ 30VDC Supply 5A 10 ~ 30V Load
Documents
Technical documentation and resources
No documents available
