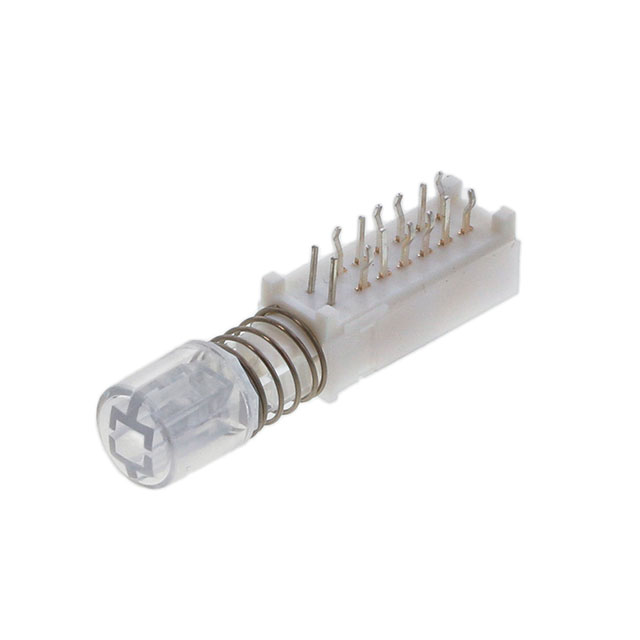

WBL4UEEBQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON 4PDT 300MA 30V

Deep-Dive with AI

Search across all available documentation for this part.

WBL4UEEBQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON 4PDT 300MA 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.29
		84	$ 3.32
		1008	$ 2.79

Description

General part information

WBL4 Series

Pushbutton Switch 4PDT Standard, Illuminated Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WBL4UEEBQR05CLR	WBL4 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Plunger for Cap
Circuit	4PDT	4PDT
Color - Actuator/Cap	Clear	Clear
Current Rating (Amps)	300 mA	300 mA
Illumination Type, Color	LED, Blue	LED, Blue, Green, Red, Yellow, Blue/Red
Illumination Type, Color	-	Blue/Green
Illumination Type, Color	-	LED
Illumination Voltage (Nominal)	3.5 VDC	1.7 - 3.5 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Switch Function	On-On	On-On, On-Mom
Termination Style	PC Pin	PC Pin
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - DC	30 V	30 V

WBL4 Series

SWITCH PUSHBUTTON 4PDT 300MA 30V

Part	Color - Actuator/Cap	Actuator Marking	Mechanical Life	Illumination Voltage (Nominal)	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Type	Mounting Type	Illumination Type, Color	Actuator Type	Circuit	Termination Style	Current Rating (Amps)	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch WBL4UEEBQR05CLR	Clear	No Marking	10000 Steps	3.5 VDC	30 V	-20 C	70 °C	On-On	Illuminated, Standard	Through Hole, Right Angle	Blue, LED	Button, Round	4PDT	PC Pin	300 mA
E-Switch WBL4UOAGQ		No Marking	10000 Steps	1.7 VDC	30 V	-20 C	70 °C	On-Mom	Illuminated, Standard	Through Hole, Right Angle	Green, LED	Plunger for Cap	4PDT	PC Pin	300 mA
E-Switch WBL4UEEGBQ		No Marking	10000 Steps	1.7 VDC, 3.5 VDC	30 V	-20 C	70 °C	On-On	Illuminated, Standard	Through Hole, Right Angle		Plunger for Cap	4PDT	PC Pin	300 mA	Blue/Green	LED
E-Switch WBL4UEERQ		No Marking	10000 Steps	1.7 VDC	30 V	-20 C	70 °C	On-On	Illuminated, Standard	Through Hole, Right Angle	LED, Red	Plunger for Cap	4PDT	PC Pin	300 mA
E-Switch WBL4UEEYQR05CLR	Clear	No Marking	10000 Steps	1.7 VDC	30 V	-20 C	70 °C	On-On	Illuminated, Standard	Through Hole, Right Angle	LED, Yellow	Button, Round	4PDT	PC Pin	300 mA
E-Switch WBL4UEERBQ		No Marking	10000 Steps	1.7 VDC, 3.5 VDC	30 V	-20 C	70 °C	On-On	Illuminated, Standard	Through Hole, Right Angle	Blue/Red, LED	Plunger for Cap	4PDT	PC Pin	300 mA
E-Switch WBL4UEEGQR05CLR	Clear	No Marking	10000 Steps	1.7 VDC	30 V	-20 C	70 °C	On-On	Illuminated, Standard	Through Hole, Right Angle	Green, LED	Button, Round	4PDT	PC Pin	300 mA
E-Switch WBL4UOARQ		No Marking	10000 Steps	1.7 VDC	30 V	-20 C	70 °C	On-Mom	Illuminated, Standard	Through Hole, Right Angle	LED, Red	Plunger for Cap	4PDT	PC Pin	300 mA
