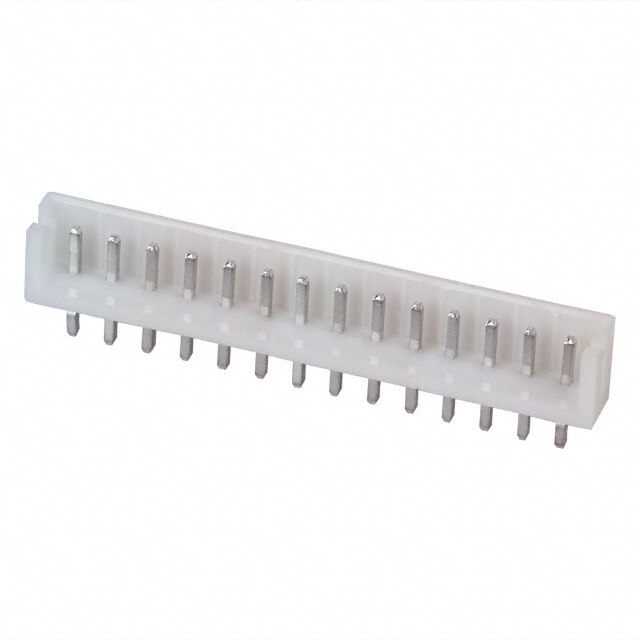

Specification	B14B-EH-A

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Post	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Height	8.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 3 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	250 V

B14B-EH Series

Part	Pitch - Mating	Number of Rows	Mounting Type	Contact Length - Post	Contact Type	Shrouding	Style	Insulation Material	Material Flammability Rating	Insulation Height	Termination	Contact Material	Connector Type	Contact Finish - Post	Fastening Type	Current Rating	Contact Shape	Contact Finish - Mating	Insulation Color	Voltage Rating	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Mating	Number of Positions	Mated Stacking Height
JST Sales America Inc. B14B-EH-A	0.098 in	1	Through Hole	0.126 in	Male Pin	Shrouded - 3 Wall	Board Cable/Wire	Nylon 6/6 Polyamide (PA66)	UL94 V-0	0.236 in	Press-Fit Solder	Brass	Header	Tin	Friction Lock	3 A	Square	Tin	Natural	250 V	All	85 °C	-25 °C	0.13 in	14	8.1 mm
