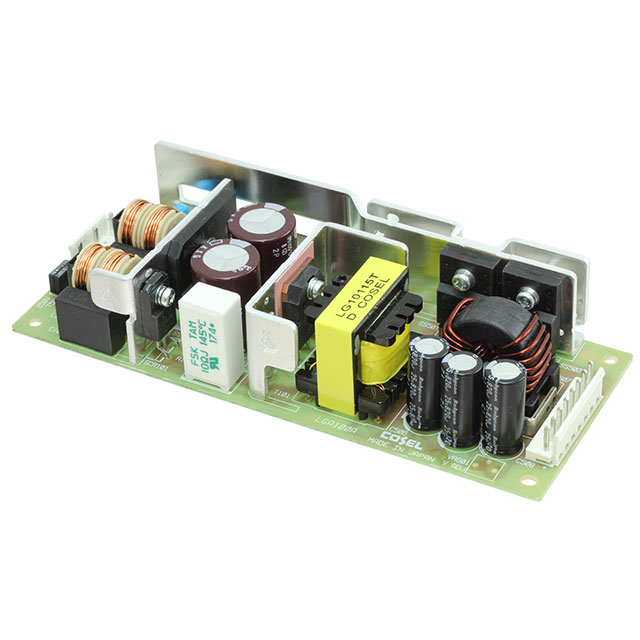

LGA100A-15

Active

Cosel USA, Inc.

AC/DC CONVERTER 15V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LGA100A-15

Active

Cosel USA, Inc.

AC/DC CONVERTER 15V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LGA100A-15

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	7 A
Efficiency	84 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	6.1 in
Size / Dimension [x]	154.9 mm
Size / Dimension [y]	2.44 "
Size / Dimension [y]	62 mm
Size / Dimension [z]	35.6 mm
Size / Dimension [z]	1.4 "
Type	Open Frame
Voltage - Input [Max]	132 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	2000 V
Voltage - Output 1	15 V

LGA100A Series

Part	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Number of Outputs	Current - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Approval Agency	Efficiency	Voltage - Isolation
Cosel USA, Inc. LGA100A-24-HSN	24 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1	4.3 A	Enclosed	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	85.5 %	2000 V
Cosel USA, Inc. LGA100A-15	15 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1	7 A	Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	84 %	2000 V
Cosel USA, Inc. LGA100A-12	12 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1		Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	83 %	2000 V
Cosel USA, Inc. LGA100A-12-J1Y	12 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1		Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	83 %	2000 V
Cosel USA, Inc. LGA100A-12-Y	12 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1		Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	83 %	2000 V
Cosel USA, Inc. LGA100A-24-Y	24 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1	4.3 A	Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	85.5 %	2000 V
Cosel USA, Inc. LGA100A-24-CJ1Y	24 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1	4.3 A	Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	85.5 %	2000 V
Cosel USA, Inc. LGA100A-12-SNC	12 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1		Enclosed	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	83 %	2000 V
Cosel USA, Inc. LGA100A-5-CJ1Y	5 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1	20 A	Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	80 %	2000 V
Cosel USA, Inc. LGA100A-24-G	24 V	35.6 mm	2.44 "	62 mm	1.4 "	6.1 in	154.9 mm	Chassis Mount	1	4.3 A	Open Frame	-10 °C	60 °C	132 VAC	85 VAC	ITE (Commercial)	CE cURus TUV	85.5 %	2000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 59.09

Description

General part information

LGA100A Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 132 VAC Input

Documents

Technical documentation and resources
