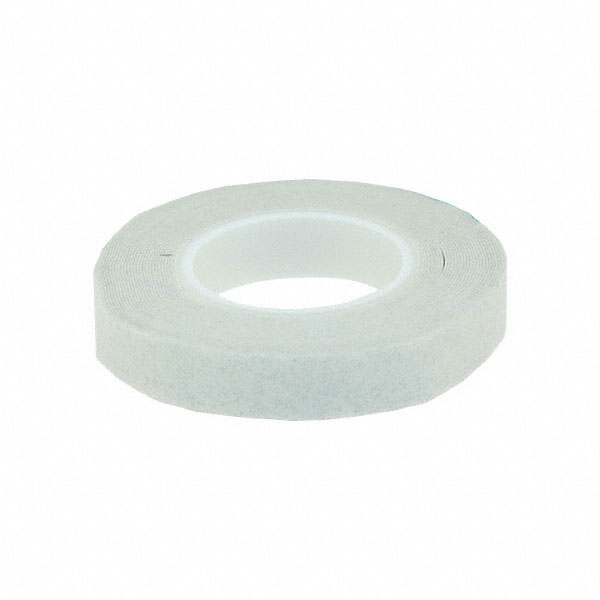

5590H-05-12.7-5

Active

3M (TC)

THERM PAD 5M X 12.7MM GRAY

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 5M X 12.7MM GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5590H-05-12.7-5

Adhesive	Tacky - Both Sides
Color	Gray
Material	Acrylic Elastomer
Outline [x]	5 m
Outline [y]	12.7 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	68 °F
Thermal Resistivity	0.46 °C/W
Thickness	0.0197 in
Thickness	0.5 mm
Type	Interface Pad, Roll

Part	Shelf Life	Thermal Resistivity	Material	Adhesive	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Outline [x]	Outline [y]	Shape	Color	Thickness	Thickness	Shelf Life Start
3M (TC) 12.7MM-26.16MM-25-5590H-05	24 Months	0.46 °C/W	Acrylic Elastomer	Tacky - Both Sides	77 °F	68 °F	Interface Pad Sheet	26.16 mm	12.7 mm	Rectangular	Gray	0.0197 in	0.5 mm	Date of Manufacture
3M (TC) 5590H-05-12.7-5	24 Months	0.46 °C/W	Acrylic Elastomer	Tacky - Both Sides	77 °F	68 °F	Interface Pad Roll	5 m	12.7 mm	Rectangular	Gray	0.0197 in	0.5 mm	Date of Manufacture
3M (TC) 12.7MM-30.99MM-25-5590H-05	24 Months	0.46 °C/W	Acrylic Elastomer	Tacky - Both Sides	77 °F	68 °F	Interface Pad Sheet	31 mm	12.7 mm	Rectangular	Gray	0.0197 in	0.5 mm	Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 5.00m x 12.70mm Rectangular Tacky - Both Sides
