RFC-UFRF-4I

Active

Datawave LLC

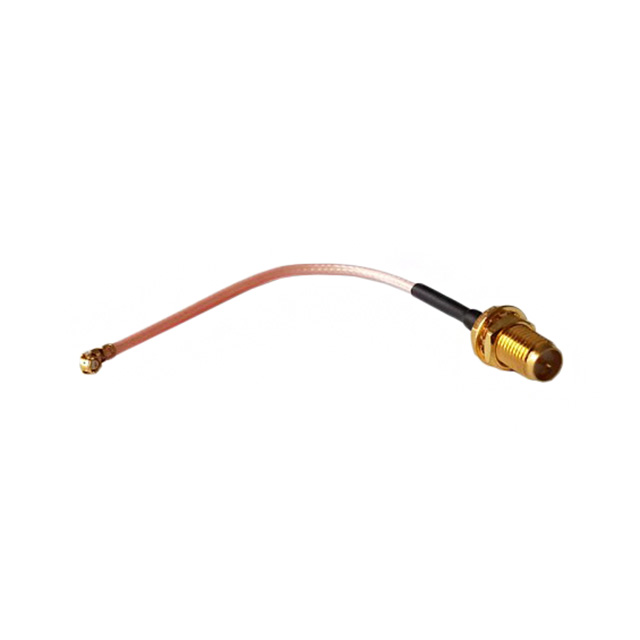

CBL ASSY U.FL-RPSMA JACK-PLUG 4"

Search across all available documentation for this part.

Active

Datawave LLC

CBL ASSY U.FL-RPSMA JACK-PLUG 4"

Technical Specifications

Parameters and characteristics for this part

Specification	RFC-UFRF-4I

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Length	4 in
Length	101.6 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to RP-SMA

CBL ASSY U.FL-RPSMA JACK-PLUG 4"

Part	Cable Type	2nd Contact Gender	2nd Connector Mounting Type	1st Connector	2nd Connector	Overall Impedance	Length	Length	Cable Impedance	1st Connector Mounting Feature	1st Contact Gender	Color	1st Connector Mounting Type	Style
Datawave LLC RFC-UFRF-4I	RG-178	Female	Free Hanging (In-Line)	RP-SMA Jack	U.FL (UMCC) Plug, Right Angle	50 Ohms	4 in	101.6 mm	50 Ohms	Bulkhead - Front Side Nut	Male	Copper	Panel Mount	U.FL (UMCC) to RP-SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.99

General part information

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA RG-178 4.000" (101.60mm)

Technical documentation and resources
