1-967280-1
ActiveTE Connectivity AMP Connectors

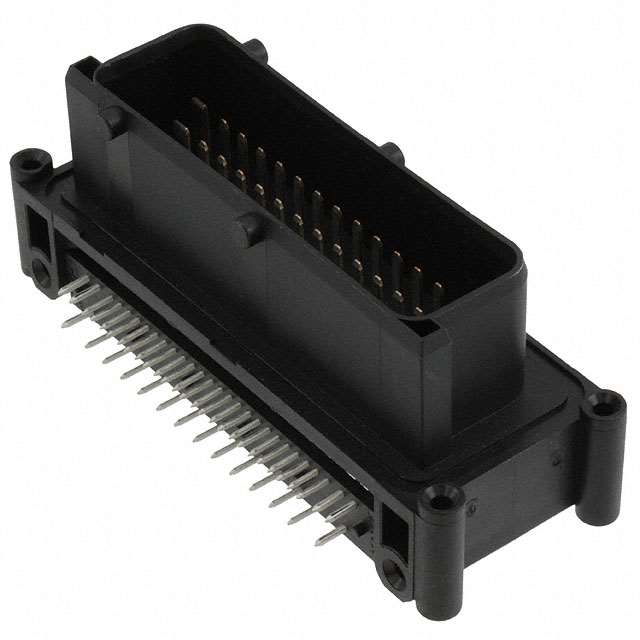

CONN HEADER R/A 42POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967280-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 42POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967280-1 |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 8 mm |
| Contact Length - Mating | 0.315 in |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Lever Lock |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height [z] | 32.5 mm |
| Insulation Height [z] | 1.28 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch - Mating | 5 mm |
| Pitch - Mating | 0.197 " |
| Row Spacing - Mating [x] | 0.23 in |
| Row Spacing - Mating [x] | 5.84 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.35 | |
| 10 | $ 15.03 | |||
| 100 | $ 14.08 | |||
967280 Series
CONN HEADER R/A 42POS 5MM
| Part | Contact Finish - Post | Number of Positions Loaded | Termination | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Material | Insulation Material | Insulation Color | Features | Style | Connector Type | Number of Rows | Number of Positions | Contact Shape | Insulation Height [z] | Insulation Height [z] | Mounting Type | Applications | Shrouding | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967280-1 | Tin | All | Solder | Tab | 0.23 in | 5.84 mm | Lever Lock | 0.122 " | 3.1 mm | Copper Alloy | Polybutylene Terephthalate (PBT), Glass Filled | Black | Mounting Flange | Board to Board, Cable | Plug | 3 | 42 | Rectangular | 32.5 mm | 1.28 in | Through Hole, Right Angle | Automotive, General Purpose | Shrouded - 4 Wall | 8 mm | 0.315 in | 5 mm | 0.197 " |
Description
General part information
967280 Series
Connector Header Through Hole, Right Angle 42 position 0.197" (5.00mm)
