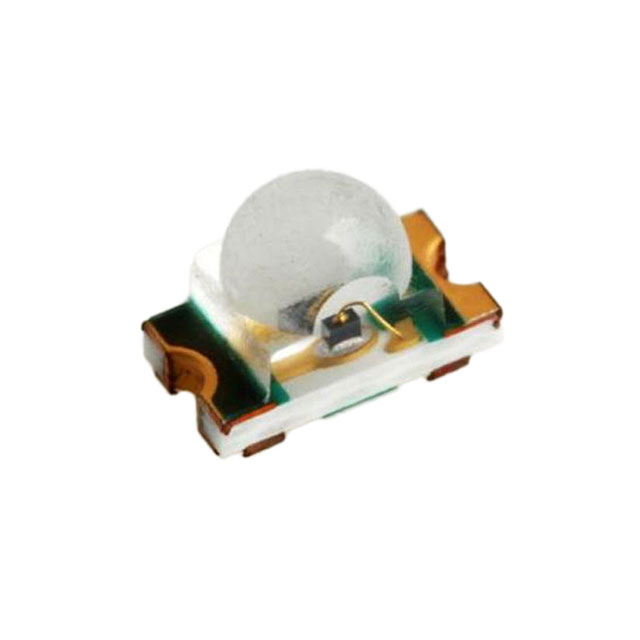

VCKB1111CS-TR
ObsoleteStanley Electric Co
LED BLUE SMD
VCKB1111CS-TR
ObsoleteStanley Electric Co
LED BLUE SMD
Description
General part information
VCKB1111 Series
Blue 468nm LED Indication - Discrete 3.3V 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | VCKB1111CS-TR |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 0.8 mm |
| Lens Color | White |
| Lens Length | 1.2 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Width | 0.8 mm |
| Millicandela Rating | 110 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 1.6 mm |
| Size / Dimension Width | 0.8 mm |
| Viewing Angle (Horizontal) | 155 ° |
| Viewing Angle (Vertical) | 165 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 468 nm |
| Wavelength - Peak | 463 nm |
