GBFTX-8

Active

Curtis Industries

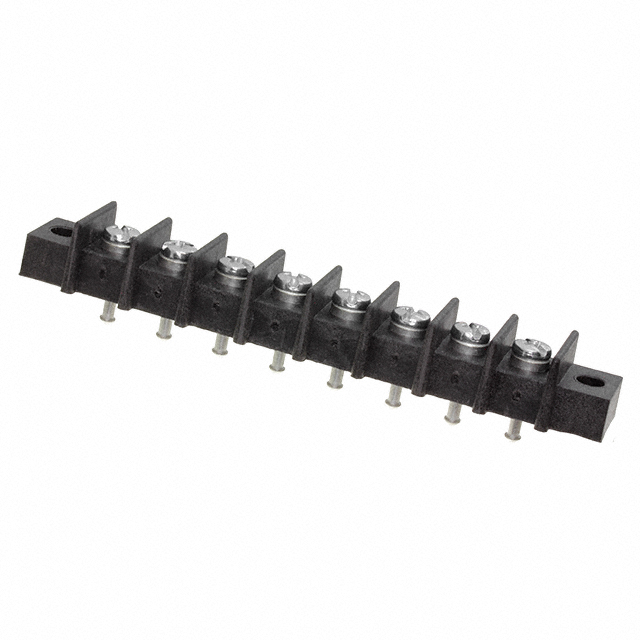

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBFTX-8

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.12
		10	$ 7.15

Description

General part information

GBFTX Series

8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBFTX-8	GBFTX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret	Solder Turret
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	-	1 - 25
Number of Circuits [custom]	8	8
Number of Rows	1	1
Number of Wire Entries	8	3 - 25
Number of Wire Entries	-	1
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GBFTX Series

CONN BARRIER STRIP 5CIRC 0.438"

Part	Bottom Termination	Number of Wire Entries	Color	Material Flammability Rating	Material - Insulation	Current Rating (Amps)	Top Termination	Terminal Screw Material	Number of Rows	Mounting Type	Number of Circuits	Terminal Block Type	Pitch [x]	Pitch [x]	Operating Temperature	Features	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits [custom]	Number of Wire Entries [custom]
Curtis Industries GBFTX-5	Solder Turret	5	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	5	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-11	Solder Turret	11	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	11	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-8	Solder Turret	8	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel		Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG	8
Curtis Industries GBFTX-17	Solder Turret	17	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	17	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-12	Solder Turret	12	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	12	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-1	Solder Turret		Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	1	Barrier Block			110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG		1
Curtis Industries GBFTX-25	Solder Turret	25	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	25	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-21	Solder Turret	21	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	21	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-18	Solder Turret	18	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	18	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
Curtis Industries GBFTX-3	Solder Turret	3	Black	UL94 V-0	Polyphenylene Oxide (PPO)	20 A	Screws	Steel	1	Chassis, Panel	3	Barrier Block	11.12 mm	0.438 in	110 °C	Flange	2 Wall (Dual)	12 AWG	22 AWG
