CTA305-0001-01

Active

Marlow Industries, Inc.

THERMOELECT ASSY AIR-AIR 143W

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

THERMOELECT ASSY AIR-AIR 143W

Technical Specifications

Parameters and characteristics for this part

THERMOELECT ASSY AIR-AIR 143W

Part	Voltage	Power - Cooling	Current	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Heat Transfer Type	Fan Location	Dimensions - Overall [x]	Dimensions - Overall [y]
Marlow Industries, Inc. CTA305-0001-01	24 V	143 W	7.5 A	-10 °C	60 °C	9.9 lbs	4.5 kg	Air to Air	Cold Side / Warm Side	300 mm	180 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 1001.84

General part information

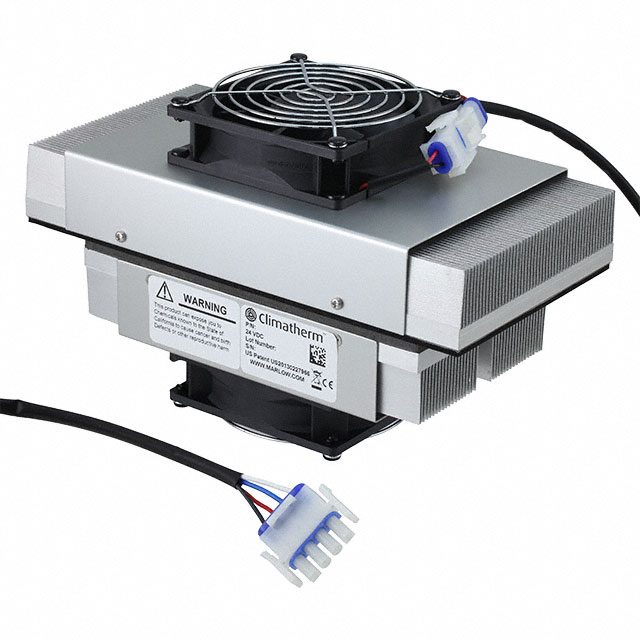

Air to Air Thermoelectric Assembly 143 W

Technical documentation and resources

No documents available
